The A-16CS is a remote controller for the A-16R Rack-Mount Personal Mixer.

Features

Product Details

The A-16CS Control Surface allows the A-16R Personal Mixer to be mounted in a rack with power amps, wireless transmitters, effects, etc., while still allowing a performer to have complete control over mix functions and presets. In addition, the A-16CS provides intuitive control over basic mix functions for systems in non-performance settings.

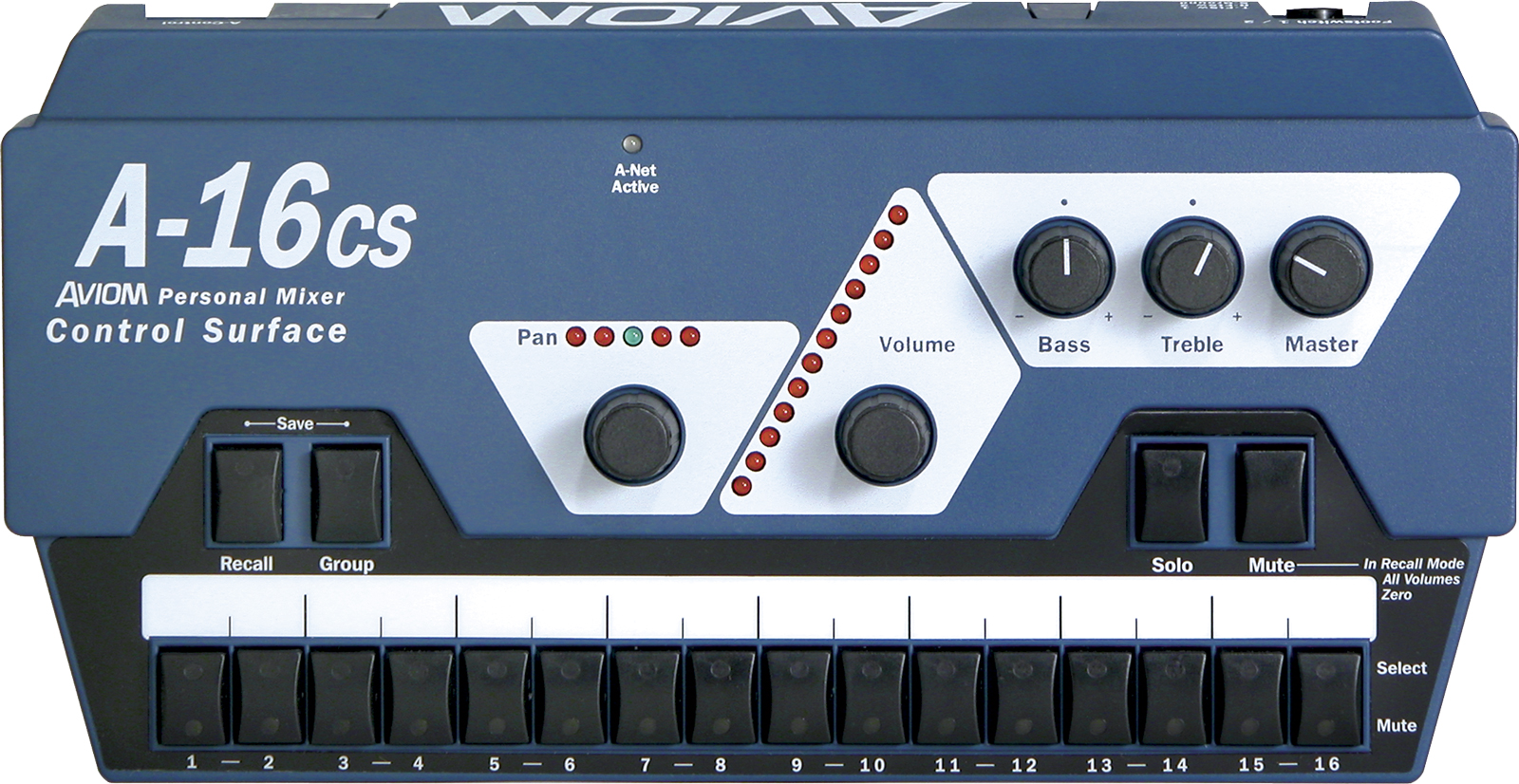

The user interface of the A-16CS is similar to that of the A-16II Personal Mixer, providing control over channel volume, grouping, pan, stereo spread, and master volume and tone. Up to 16 mix snapshots (stored in the A-16R) can be saved and recalled remotely from the A-16CS

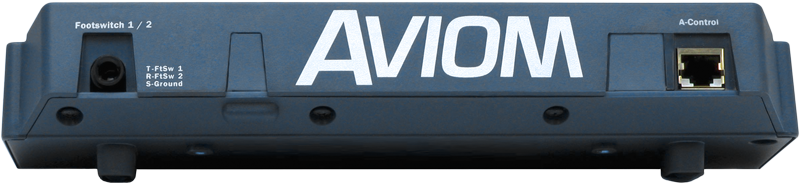

For hands-free operation, the A-16CS also includes a footswitch jack that allows a performer to use a standard dual keyboard footswitch to select mix presets.

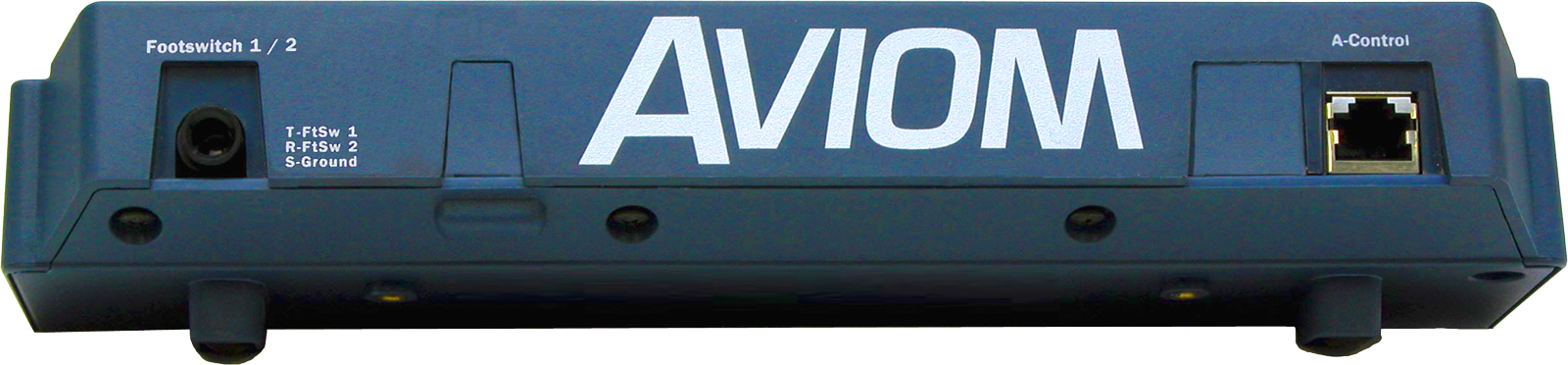

The A-16CS connects to the A-16R via standard Cat-5e cable using the A-Control jacks built into the A-16R and A-16CS. The A-Control cable can be up to 200 feet (61 m) in length.

Systems

Personal Mixing System with Rack-Mount Personal Mixers

For performers who use wireless in-ear monitors or floor wedges with external amplification, the combination of the A-16R Personal Mixer and A-16CS Control Surface provides the cleanest solution. The A-16Rs are kept in a rack off-stage, with the transmitter units for the wireless systems and the amplifiers for the floor wedges. A-16CS Control Surfaces on stage, connected to each A-16R by a Cat-5e cable, allow the musicians to make adjustments to their mixes with the same intuitive interface as on the A-16II Personal Mixer.
