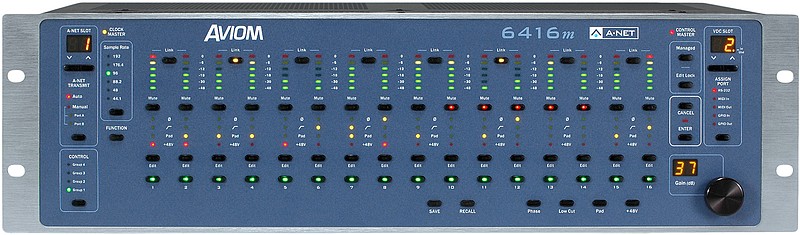

6416m Mic Input Module

Inputs to a Pro64 audio network or digital snake can come from mic- or line-level analog sources, an AES3 digital source, or a Yamaha® digital console or mix engine. Any combination of input sources can be used to create a high performance digital network.

Once audio sources are connected, the base A-Net Slot must be set on each device. This setting maps the hardware channels to a corresponding range within the network. For instance, with the A-Net Slot set to 17, channels 1-16 on a 16-channel input module such as the 6416m will be placed in the network in A-Net Slots 17-32. Unlike Pro16™ devices, all Pro64 devices simultaneously transmit and receive the full audio network, so setting the A-Net Slot is essential to managing the network resources and keeping track of your system's audio channels.

Finally, individual inputs must be activated into the network. This is accomplished by pressing the numbered channel button on the front panel of rack-mount devices or, in the case of the 6416Y2 A-Net card, via DIP switches.

A Pro64® network can be connected in almost any way imaginable with no impact on audio performance. Every cable in a Pro64 network always carries the full capacity of the network, meaning that there are no limitations on the location of input or output modules. Pro64 also supports the use of hubs such as the MH10 and fiber-enhanced MH10f when parallel connections are desired.

Because every Pro64 A-Net® port is always bidirectional and carries the full capacity of the network, all of the ports throughout a network are essentially interchangeable. If you plan to operate your system in Manual Mode (up to 64x64), connecting one device's B port to the next device's A port throughout the system will make tracking signal flow in complex systems more straightforward. If, however, your system will always run in Auto Mode, there is no need to keep track of A-Net connections.

The ASI A-Net Systems Interface can be used to connect select Pro16 Series devices to a Pro64 Series network, further enhancing the output options for a system or installation.

The ASI provides a link between Pro64 Series networking products and Pro16 Series output devices, such as the AV-P2 and AN-16/o Output Modules, and the A-16II and A- 16R Personal Mixers. The ASI features two Pro64 network ports and four Pro16 outputs, separated into 16-channel blocks and transmitted out the corresponding Pro16 ports.

The ASI is a plug-and-play module, requiring no configuration beyond selecting a Pro64 network port for Manual Mode systems. The number of available channels and Pro16 ports is determined by the sample rate of the Pro64 network (64 channels and four ports at 44.1/48kH±, 32 channels and two ports at 96kHz±, and 16 channels and one port at 192kHz±). Stereo link settings from the Pro64 network are passed to the Pro16 outputs.

To control the 6416m Mic Input Module remotely over the Pro64 network, two additional components are required: the RCI Remote Control Interface and the MCS Mic Control Surface.

The RCI Remote Control Interface provides a network access point for remote control. It can be connected anywhere in the Pro64 network, and multiple RCIs can be installed to provide the flexibility of additional control points, which is especially useful when you have multiple users who need to control mic preamp channel settings. The 6416m and RCI can be set to one of four Control Groups to divide control among a group of users.

The MCS Mic Control Surface connects to the RCI with a Cat-5e cable and allows the user to select and edit all mic channel parameters, as well as providing access to the 16 mic preamp presets stored within each 6416m. The MCS can be disconnected and reconnected without affecting network performance.

The RCI Remote Control Interface has both a front-panel headphone monitor with volume control and a rear-panel line-level output. Connecting the rear-panel XLR output to a mixing console allows the operator to listen to the selected channel while making changes.The monitor output is always mono.

As an option, the RCI can be set to hold a specific channel in the monitor outputs even while other mic channels are selected and edited from the MCS.

In the diagram, a 6416dio and RCI are shown connected in parallel to an MH10f hub. The line-level output from the RCI is connected to the mixing console.

Multiple users can control mic preamp settings on 6416m Mic Input Modules in a Pro64 audio network by installing two or more RCI Remote Control Interfaces and at least one MCS Mic Control Surface.

The Control Group feature on the 6416m and RCI allows mic preamps to be grouped together and their control assigned to a specific user. Up to four unique control groups can be created. Once set to a control group, a 6416m mic preamp will only respond to editing commands coming from an RCI and MCS combination where the RCI has been set to the same Control Group.
