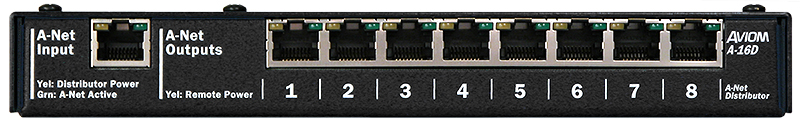

- One A-Net input, eight A-Net outputs
- Can insert DC power for up to eight A-Net devices into the Cat-5e cable
- 1/2-rack-space footprint - mounts easily on a standard rack shelf
- A-Net activity LEDs on the main input
- DC power indicator LEDs on each output jack
- Multiple A-16D Distributors can be used in a system
The A-16D is also a cost-effective way to refresh an A- Net signal for long runs in excess of 500ft/150m, to provide a redundant cable path in a digital snake or audio distribution system, and to split an A-Net signal to multiple output locations. There is no limit to the number of A-Net Distributors that can be used in a single system.
| A-Net Inputs | One Category 5 (RJ45 connector) |
|---|---|
| A-Net Outputs | 8 Category 5 (RJ45 connector),
optionally powered (DC) |
| Remote DC Power Inputs | 8; Rear panel; accepts power supplies from A-16II or A-16R; size: 2mm |
| Output Voltage for Personal Mixers | 18-24 VDC, 0.5 amp transmitted over the Cat-5e cable |
| Main Power Input | one; accepts included external DC power supply,
universal switching type |
| LED Indicators | Power On, Yellow |
| A-Net LED Indicators | A-Net Active, Green |
| Remote DC Power Active LED | One per A-Net output |
| Size | 8.5? (215 mm) wide x 6.7? (170 mm) deep 1.2? (30.4 mm) high; can be rack-mounted on a standard 1U rack accessory shelf (optional) |
| Weight | 2.0 lbs.
(0.91 kg) |
Click image to enlarge Up to 16 audio sources (any combination of mono and stereo, up to 16 channels) are connected to a Pro16 input module, where the input signals are converted to digital and transmitted as A-Net. The A-Net signal connects to one or more A-Net Distributors, which supply both the digital audio and DC power to the connected output devices, in this case the AV-P2 Output Module.
Users can select any of the input source channels to be monitored by using the rotary selector on the front of the AV- P2.
Click image to enlarge Up to 16 audio sources (any combination of mono and stereo, up to 16 channels) are connected to an input module, where the input signals are converted to digital and transmitted as A-Net. The A-Net signal connects to one or more A-Net Distributors, which supply both the digital audio and DC power to the connected output devices, in this case the A-16II Personal Mixer.
Users can select any of the input sources to be monitored using the channel buttons on the front of the A-16II, while monitoring with headphones, earbuds, or powered speakers.
The simplest Pro16 digital snake or audio distribution system requires one A-Net input module and one A-Net output module, connected with up to 500 feet (150 meters) of Cat-5e cable.
Simply connect the A-Net Out of one device to the A-Net In of the next. For parallel connections, use the A-16D or A-16D Pro A-Net Distributor. There is no limit to the number of devices that can be connected serially or in parallel.
For higher channel-count runs, use the A-Net Expansion jacks (16x16 or 32x0) or the AN-16SBR System Bridge (up to 32x32, 48x16, or 64x0).
A digital split creates an exact copy of a set of 16 outputs in a Pro16 network. The AN-16/o Output Module's A-Net Out port can be used to connect additional AN-16/o modules that can be connected up to 500 feet (150 meters) apart. Simply connect A-Net Out from the first output module to A-Net In on the next.
In a source select system, the AV-P2 two-channel output module can be connected in the same manner. In fact, any combination of Pro16 output devices can be used, and they can be placed in any order.
Modules can be daisy chained (serial connection) or connected using the A-16D or A-16D Pro A-Net Distributors for parallel connections.
Personal Mixers can be connected in any combination
of serial (daisy chain) and parallel (star) connections. Every Personal Mixer has both an A-Net In and A-Net Out jack, and mixers can be daisy-chained without limit. Every Personal
Mixer is truly plug-and-play: connect it and you're ready to go.
Most users, however, choose to use an A-Net Distributor, such as the A-16D Pro, and connect mixers in parallel. This offers several advantages. First, any time devices are daisy-chained, "downstream" devices depend on upstream devices for their data. If someone unplugs a mixer or knocks over a stand on stage, multiple users may be affected. Second, using a distributor delivers the added convenience of providing power for the mixer over the Cat-5 cable, eliminating the need for extension cords and external power supplies at the mixers. Thus, using parallel connections is both more secure and more convenient.
Distributors can be inserted into the A-Net stream at any point in the system, and there is no limit to the number of distributors in a system.
The diagrams show A-16II Personal Mixers, but any combination of Pro16 output devices can be used, including the A-16R and AV-P2.
