Product Compatibility Guide
Aviom creates the most flexible personal mixing systems available. We've been the market leader in personal mixing for stage and studio since 2002. With hundreds of thousands of products in the field, it's natural for systems to be added on to, expanded, and/or upgraded.
The information below will help simplify the selection, replacement, and expansion process for your system.
Personal Mixers
The original Aviom Personal Mixer that started it all in 2002 was the A-16. It was replaced with the A-16II Personal Mixer when we started building the first digital console cards to output Aviom A-Net (the Y1 for Yamaha devices and the D-16c for DiGiCo devices). Other manufacturers' digital console cards followed when they licensed Aviom's proprietary A-Net protocol technology for use in their own designs.
The table below shows which Personal Mixers can be connected to the various network input sources available for both current and legacy products.
Personal Mixer Compatibility Chart
| Input Device | A640 | A360 | A320 | A-16II | A-16 | A-16R |
|---|---|---|---|---|---|---|
| Analog & Digital Input Modules / Console Cards | ||||||
| AN-16/i v.2 Input Module | Yes | Yes | Yes | Yes | No | Yes * |
| Y1 Card for Yamaha | Yes | Yes | Yes | Yes | No | Yes * |
| Partner Console Cards | Yes | Yes | Yes | Yes | No | Yes * |
| AN-16/i Input Module | Yes | Yes | Yes | Yes | Yes | Yes * |
| AN-16/i-M Input Module | Yes | Yes | Yes | Yes | Yes | Yes |
| A-16T Input Module | Yes | Yes | Yes | Yes | Yes | Yes |
| Dante A-Net Distributors | ||||||
| D400-Dante A-Net Distributor | Yes | Yes | Yes | Yes | No | Yes * |
| D800-Dante A-Net Distributor | Yes | Yes | Yes | Yes | No | Yes * |
| D800-Dante v.2 A-Net Distributor | Yes | Yes | Yes | Yes | No | Yes * |
| A-Net Distributors | ||||||
| D400 A-Net Distributor | Yes | Yes | Yes | Yes | No | Yes * |
| D800 A-Net Distributor | Yes | Yes | Yes | Yes | No | Yes * |
| D800 v.2 A-Net Distributor | Yes | Yes | Yes | Yes | No | Yes * |
| A-16D Pro A-Net Distributor | Yes | Yes | Yes | Yes | Yes | Yes |
| A-16D A-Net Distributor | Yes | Yes | Yes | Yes | Yes | Yes |
* A-16R Personal Mixers with serial numbers below 10692 are not compatible.
Personal Mixer Upgrades

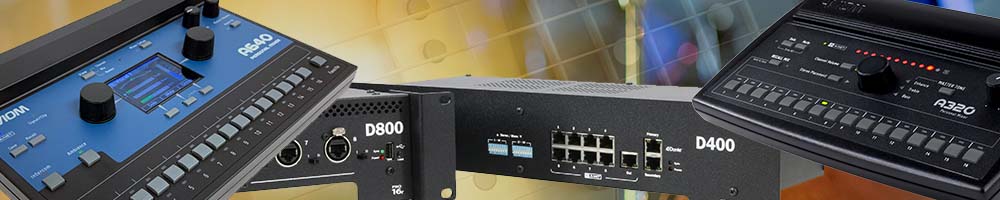

In a personal mixing system, the A640, A360, A320, and A-16II Personal Mixers may all be used together simultaneously.
When upgrading a system that uses the A-16II, or if you just need to replace one mixer, you can simply unplug the Cat-5 cable from an A-16II and connect the A640, A360, or A320 as a direct replacement. The A640, A360, and A320 will automatically receive the same input channels in the exact same order as those sent to the A-16II Personal Mixer.
A-Net Distributors
Aviom's A-Net Distributors are designed to distribute A-Net data plus DC power to Personal Mixers. There are six total A-Net Distributors that have been produced through the years. Four feature Aviom A-Net inputs, while two feature Dante inputs (the D800-Dante features both a Dante and an Aviom A-Net input).
| Distributor Model | A-Net Input | Dante Input |
|---|---|---|
| D400 A-Net Distributor | Yes | No |
| D800 A-Net Distributor | Yes | No |
| D800 v2 A-Net Distributor | Yes | No |
| D400-Dante A-Net Distributor | No | Yes |
| D800-Dante A-Net Distributor | Yes | Yes |
| D800-Dante v.2 A-Net Distributor | Yes | Yes |
| A-16D A-Net Distributor (Legacy) | Yes | No |
| A-16D Pro A-Net Distributor (Legacy) | Yes | No |
A-Net Signal Sources
An A-Net Distributor gets its input from another device that outputs Aviom's A-Net protocol. Any device that outputs an Aviom A-Net digital signal can be connected to an A-Net Distributor's digital A-Net input:
- AN-16/i v2 Input Module
- Y1 console card for Yamaha devices
- Console cards built by partner companies (DiGiCo, Avid, Soundcraft, etc.)
- AN-16/i-M Mic Input Module
- AN-16/i Input Module
- A-16T Input Module
Replacing Legacy Distributors
The two discontinued legacy products, the A-16D and A-16D Pro A-Net Distributors, can still be used with newer Personal Mixers (A640, A360, and A320).
If you need to replace an A-16D or A-16D Pro A-Net Distributor, you can substitute any of the current A-Net Distributors listed above as long as the replacement unit has an A-Net input.
Combining A-Net Distributors

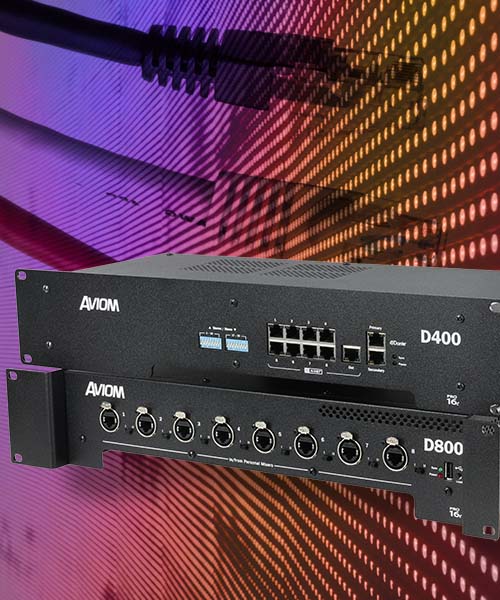

When expanding a personal mixing system to allow for more than eight performers, A-Net Distributors can be daisy-chained together. Simply connect the A-Net Out on the first unit to the A-Net In on the second A-Net Distributor.
Everything that arrives at the first A-Net Distributor will be passed along to the second unit—including high channel-count systems. For example, if a D800-Dante is used, all of its possible 64 input patches from a Dante network will be passed on to a D400 A-Net Distributor or legacy A-16D Pro connected to its A-Net Out port.
