Mix320-A Personal Mixing System
Simple setup. Powerful performance. A complete monitoring system in a box, ready to use!

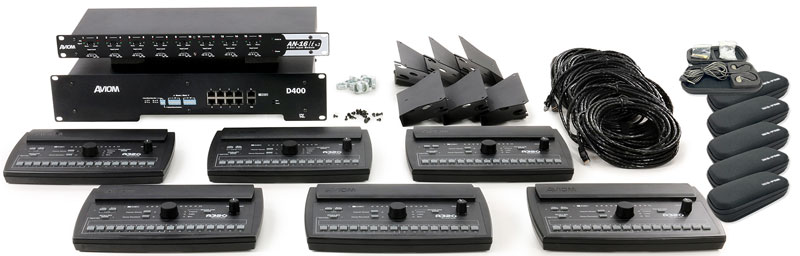

The Mix320-A Personal Mixing System includes everything you need to create a 16-input personal mixing system for six performers. It's perfect for stage or studio use. Connect balanced analog inputs from a mixing console for live use, or to the outputs of your DAW recording interface or console to create a studio cue system.
🔍 Click to enlarge
Features & What's in the Box
The A320 Personal Mixers get their digital data and power over the same cable, so all you need to do is connect a Cat-5 cable and you're ready to start using the system.
- (1) AN-16/i v.2 Input Module
- (1) D400 A-Net Distributor
- (6) A320 Personal Mixers
- (6) MT-1a Mic Stand Mounts
- (7) Cat-5e Cables
- (6) MEE Audio M6 Pro IEMs (Optional Enhanced Edition)
Intuitive Mixing with the A320

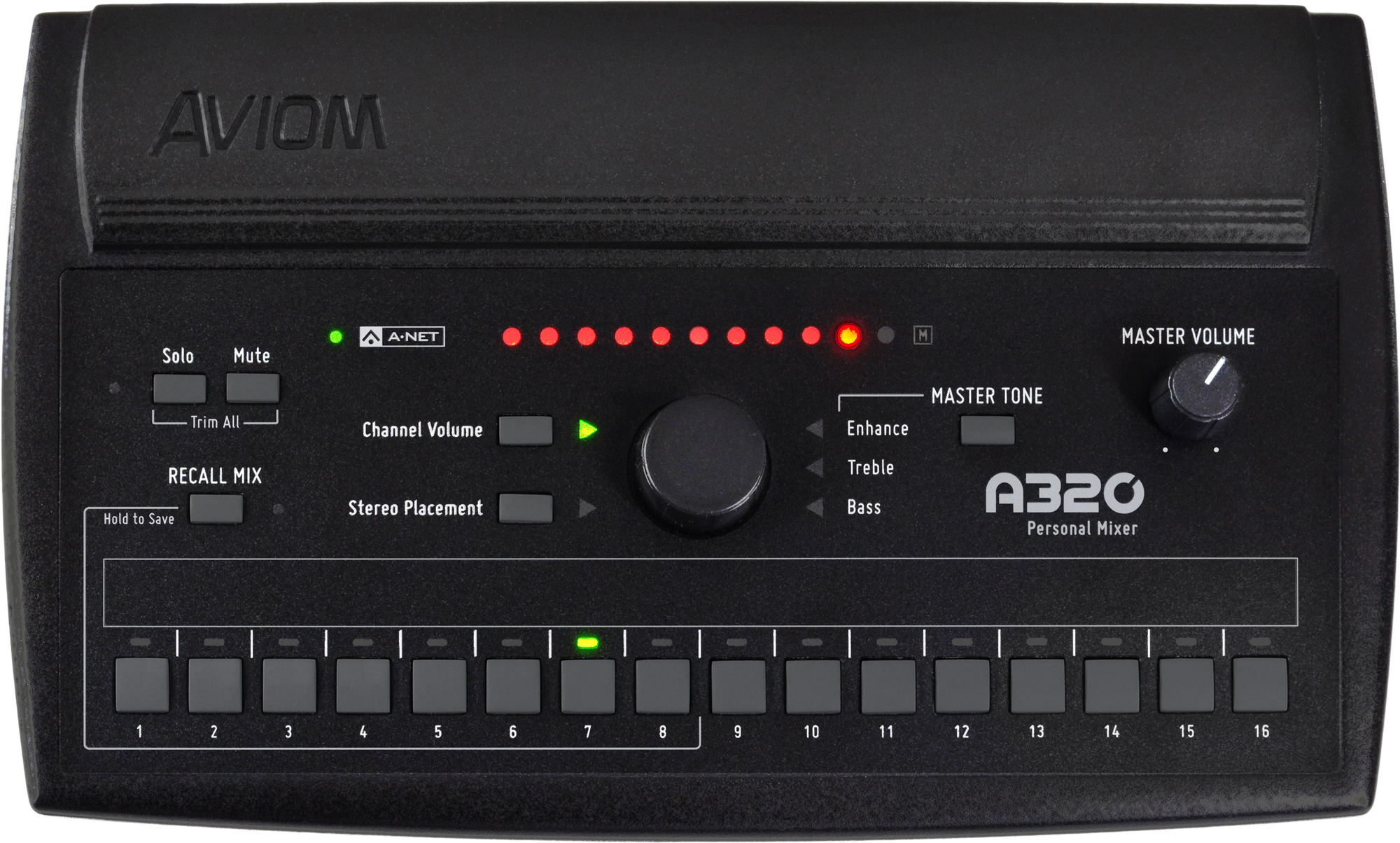

The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. It features 16 mono or stereo mix channel buttons, individual volume controls, and easy-to-use Stereo Placement controls.
Connect headphones, earbuds, or a wireless in-ear monitoring system to the Personal Mixer and you're ready to start mixing.
🔍 Click to enlarge
Analog Front End (AN-16/i v.2)

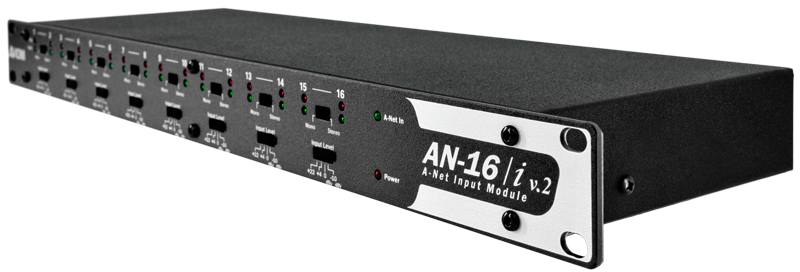

The analog AN-16/i v.2 Input Module allows up to 16 line-level signals to be connected as the inputs to the personal mixing system.
Each channel features a 1/4-inch TRS balanced input and thru jack that make it easy to interface with direct outs, aux sends, or insert points on your mixing console or recording interface. Analog audio is converted to 48kHz, 24-bit A-Net digital data for distribution.
🔍 Click to enlarge
Power and Audio Over Cat-5

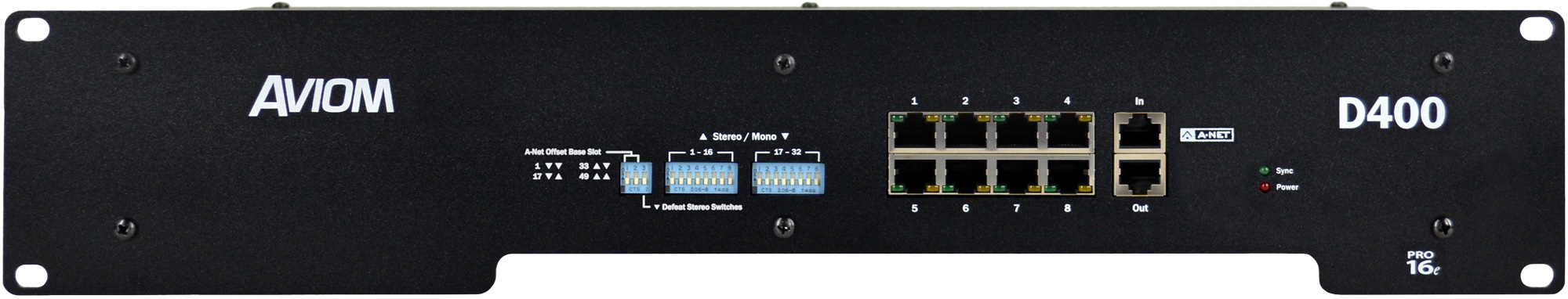

For distributing A-Net digital data and DC power to the A320 Personal Mixers, the Mix320-A system includes the D400 A-Net Distributor.
The D400 features A-Net In and Out jacks plus eight powered A-Net ports for Personal Mixers, ensuring reliable, single-cable connectivity for every performer.
🔍 Click to enlarge
In-Ears Included (MEE Audio M6 Pro)

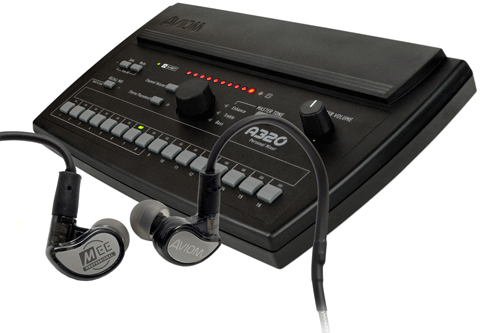

The enhanced version of the Mix320-A system includes six sets of MEE Audio M6 Pro IEMs.
The earbuds feature detachable, replaceable cords and come with an assortment of flexible ear tips that reduce outside noise and allow you to easily find the most comfortable fit. Each IEM set also includes custom-engraved metal faceplates and a protective carrying case.
🔍 Click to enlarge
Mix320-A System Technical Specifications
A320 Personal Mixer Specifications
| Audio Output | 1/4" TRS stereo, headphone or line level |
|---|---|
| Stereo Mix Output Wiring | Tip: Audio Left; Ring: Audio Right; Sleeve: Ground |
| A-Net I/O | 1 A-Net In, RJ45 connector; Supports Pro16 and Pro16e |
| D/A Conversion | 44.1/48kHz, 24-bit |
| Stereo Operation |
Stereo Link, per channel pair (set at input module); Variable pan per mono channel or pan/spread per stereo channel pair |
| Headphone Output Power | 275 mW per side into 50 Ohms (both sides driven) |
| Output Impedance | 5 Ohms |
| Frequency Response | 3Hz–22kHz +0.2dB/-3dB at 50 Ohms |
| THD +N & Signal to Noise | THD+N: < 0.003% | Signal-to-Noise: -106dB (measured with zero data into all channels) |
| Latency | 0.880 msec (measured from analog input to analog output) |
| Power & Cabling |
24 VDC, 0.5 amp (supplied over Cat-5 cable via A-Net Distributor); Use shielded Cat-5e (or better) cable; max 400 ft (122 m) between devices |
| Dimensions & Weight |
10.26" (260.6 mm) W x 6.14" (155.95 mm) D x 1.91" (48.51 mm) H; Weight: 1.3 lbs (0.59 kg) |
| Options | MT-1a Mic Stand Mount |
AN-16/i v.2 Input Module Specifications
| Audio Inputs & Thru | 16, balanced line-level, 1/4-inch TRS connector; TRS Thru impedance-matched output |
|---|---|
| Inputs Wiring | Tip: Audio +; Ring: Audio -; Sleeve: Ground |
| A/D Conversion & Freq. Response | 48kHz sample rate, 24 bit | 4Hz–22kHz +0.2dB/-3dB |
| A-Net Connections |
A-Net In: 1 RJ45 (with 4-position slot range selector for Pro16e); A-Net Out: 1 RJ45 |
| Gain Settings & Metering | 4-position switch (-10dBv, 0dBu, +4dBu, +22dBu); Green Signal Present & Red Clip LEDs per channel |
| Input Impedance & Max Level | 17.8k ohms (48k ohms overall); Max input level: +22dBu |
| THD+N, Crosstalk & S/N | THD+N: < 0.003% | Crosstalk: -90dB | S/N: 90dB typical (unweighted) |
| Power Supply | External DC 18–24 VDC, 500mA (Universal switching 100–240V, 50/60Hz) |
| Dimensions & Weight | 19" (482.6 mm) W x 5.75" (146 mm) D x 1.75" (1U high); Weight: 6.8 lbs (3.08 kg) |
D400 A-Net Distributor Specifications
| A-Net Input | Pro16 or Pro16e A-Net; RJ45 connector |
|---|---|
| A-Net Offset & Stereo Switches |
2-position DIP switch selects starting channel (1, 17, 33, or 49); Defeat stereo switch chooses local (up) vs network (down) stereo links |
| A-Net Outputs | 8 powered RJ45 ports for mixers; 1 unpowered Pro16e RJ45 A-Net Out for expansion |
| Output Voltage for Mixers | 24VDC, 0.5 amp transmitted over Cat-5e cable |
| Power Supply & Fuses |
Internal IEC connector; 100-120 VAC / 200-240 VAC (switchable) 50-60Hz @ 220W max; Fuses: T2.5AL/250V (115V) or T1.25AL/250V (230V) |
| Dimensions & Weight | 19" (482.6 mm) W x 7.386" (187.6 mm) D x 3.5" (2U high); Weight: 12.0 lbs (5.44 kg) |
