Mix320-Y Personal Mixing System

Simple setup. Powerful performance. A complete monitoring system in a box, ready to use!

The Mix320-Y Personal Mixing System is a complete personal mixing system for six performers, designed specifically for users of Yamaha® digital mixing consoles. The Y1 A-Net Card plugs into any open MY expansion slot on your Yamaha console—there's nothing to configure.

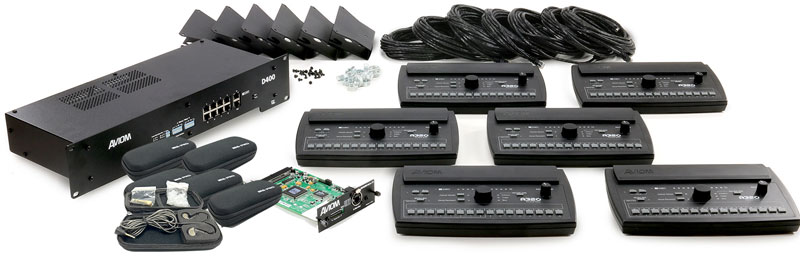

Aviom Mix320-Y Personal Mixing System Package Overview

🔍 Click to enlarge

Features & What's in the Box

The A320 Personal Mixers get their digital data and power over the same cable, so all you need to do is connect a Cat-5 cable and you're ready to start using the system.

(1) Y1 A-Net Card for Yamaha
(1) D400 A-Net Distributor
(6) A320 Personal Mixers
(6) MT-1a Mic Stand Mounts
(7) Cat-5e Cables
(6) MEE Audio M6 Pro IEMs (Optional Enhanced Edition)

The Mix320-Y Personal Mixing System is available in two versions. The standard version is great if you already have in-ear monitors and/or headphones. If you're new to personal mixing and need IEMs, there is an enhanced version of the kit with six MEE Audio M6 Pro in-ear monitors included. These single-driver IEMs include a 72-inch cable, an assortment of ear tips, and a case.

A Simple Digital Console Interface

The Mix320-Y Personal Mixing System gets its inputs from a Y1 A-Net card installed in your Yamaha digital mixing console. The Y1 card allows up to 16 sources from the console to be assigned as inputs to the personal mixing system.

Assign any combination of channels, direct outputs, aux sends, groups, or sub-mixes directly from the Yamaha console user interface to the Y1 card.

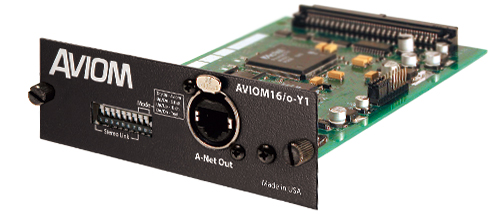

Aviom16/o-Y1 A-Net Expansion Card for Yamaha

🔍 Click to enlarge

Note: The Y1 card is not compatible with TF Series consoles, as they do not feature Yamaha MY-format expansion slots.

Intuitive Mixing with the A320

The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. It features 16 mono or stereo mix channel buttons, individual volume controls, and easy-to-use Stereo Placement controls.

Plug headphones, earbuds, or a wireless in-ear monitoring system into the Personal Mixer and you're ready to start mixing.

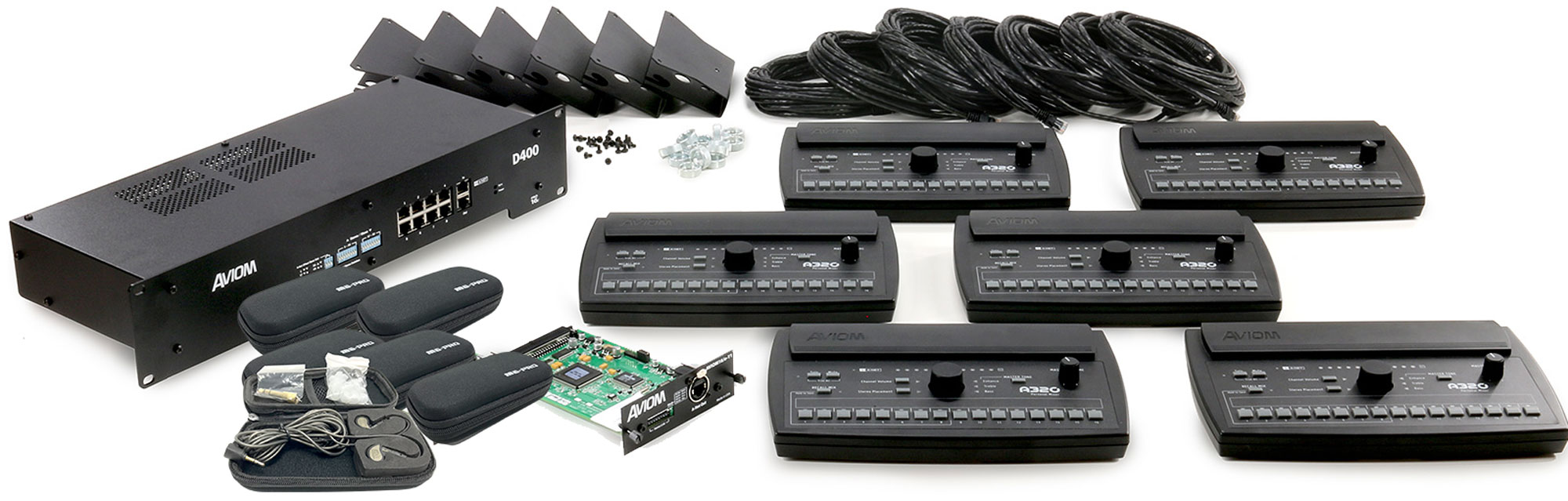

Mix320-Y Package High Resolution Overview

🔍 Click to enlarge

Power and Audio Over Cat-5

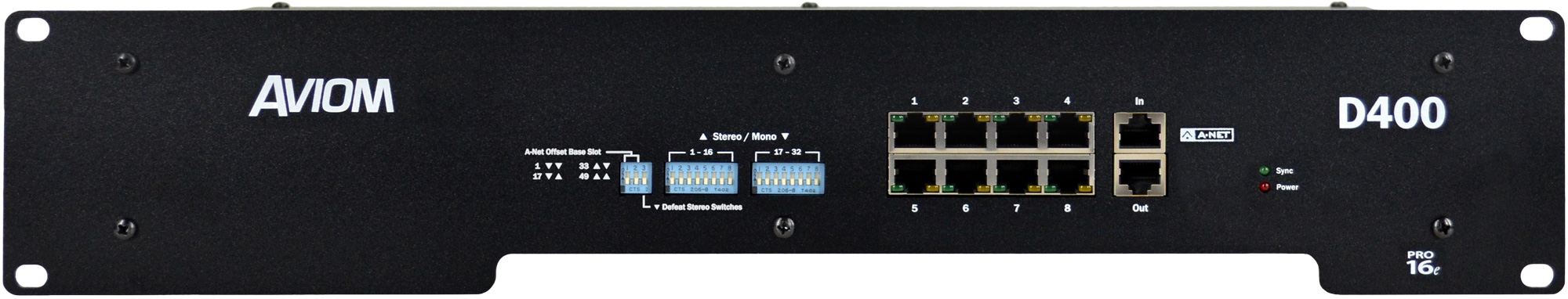

For distributing the A-Net digital data and DC power to the A320 Personal Mixers, the system includes the D400 A-Net Distributor.

Just connect the console card's output to the distributor's A-Net In and use the D400's eight powered A-Net ports for connecting Personal Mixers over standard Cat-5e cables.

🔍 Click to enlarge

In-Ears Included (MEE Audio M6 Pro)

The enhanced version of the Mix320-Y system includes six MEE Audio M6 Pro IEMs.

The earbuds feature detachable, replaceable cords and come with an assortment of flexible ear tips that reduce outside noise and allow you to easily find the most comfortable fit for your ears. Each IEM set also includes custom-engraved metal faceplates and a protective case.

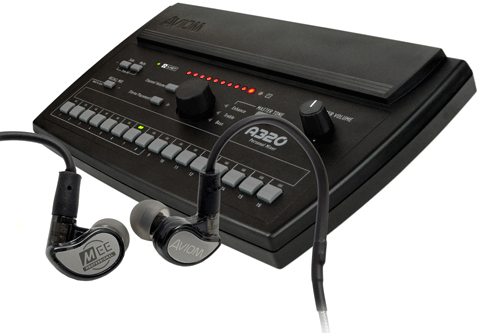

A320 Personal Mixer with MEE Audio M6 Pro Earbuds

🔍 Click to enlarge

Explore Alternative System Options

The Mix320-Y system is designed specifically for users of Yamaha® digital consoles. If you have a Dante™-enabled console or network, the Mix320-D Personal Mixing System is what you need (includes the D400-Dante distributor and requires no console card). If you have an analog console or recording system, the Mix320-A Personal Mixing System is what you need (includes the 16-channel line-level AN-16/i Input Module).

All Aviom mixing system packages are easily expandable—simply add more Personal Mixers and A-Net Distributors whenever your stage or studio grows.

Mix320-Y Technical Specifications

A320 Personal Mixer Specifications

Audio Output	1/4" TRS stereo, headphone or line level
Stereo Mix Output, Headphone/Line	Tip: Audio Left; Ring: Audio Right; Sleeve: Ground
A-Net I/O	1 A-Net In, RJ45 connector; Supports Pro16 and Pro16e
D/A Conversion	44.1/48kHz, 24-bit
Stereo Operation	Stereo Link, per channel pair; Set at the input module; Variable pan per mono channel or pan/spread per stereo channel pair
Headphone Output	275 mW per side into 50 Ohms (both sides driven)
Output Impedance	5 Ohms
Frequency Response	3Hz–22kHz +0.2dB/-3dB at 50 Ohms
THD +N & Signal to Noise	THD +N: < 0.003% \| Signal to Noise (unweighted): -106dB (measured with zero data into all channels)
Latency	0.880 msec (measured from analog input to analog output)
Pro16e A-Net & Cable	Use Cat-5e (or better) cable; Maximum 400 ft (122 m) between devices; Supports Power Over A-Net. Use shielded Cat-5e (or better) cable to stay below CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
Power	24 VDC, 0.5 amp; Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor
Dimensions & Weight	10.26" (260.6 mm) wide x 6.14" (155.95 mm) deep x 1.91" (48.51 mm) high \| Weight: 1.3 lb. (0.59 kg)
Options	MT-1a Mic Stand Mount

Y1 A-Net Card Specifications

A-Net Pro16 Output	16 channels of A-Net digital data (* 8 channels on PM1D)
Interface Format	Yamaha mini-YGDAI (MY) Expansion Card
Maximum Expansion	Limited only by the number of available MY expansion slots in the digital mixer
Sample Rate & Conversion	44.1kHz to 48kHz, +/-10% \| 24-bit digital conversion
A-Net Output Connector	A-Net Out: 1; EtherCon® RJ45 connector
DIP Switch Controls	Switch 1-8: Stereo Link on/off Switch 9-10: A-Net mode (8-channel, 16-channel, Aviom, Test; Default is switch 9 up, 10 down)
A-Net Pro16 Networking	A-Net allows 16 channels of audio to be transmitted over one Cat-5e cable; Use unshielded Cat-5e UTP (or better) cable; max. length 500 feet (150m) between devices
Latency & Power	Latency: <0.880 msec (analog in to analog out) \| Power: None required (uses Yamaha host device)
Dimensions & Weight	4.75" (120.7 mm) wide x 6.25" (158.8 mm) deep x 1.5" (38.1 mm) high \| Weight: 0.8 lbs (0.36 kg)
Options	SB4 System Bridge (used to combine up to four A-Net streams for transmission over one Cat-5e cable; requires D800 or D800-Dante Distributor)

D400 Specifications

A-Net Input	Pro16 or Pro16e A-Net; RJ45 connector
A-Net Offset Base Slot	2-position DIP switch selects the starting channel that Personal Mixers will receive from the network (1, 17, 33, or 49)
Defeat Stereo Switches	Chooses between local (front panel) stereo links (up) or network stereo links (down)
A-Net Out to Personal Mixers	Eight RJ45 connectors, powered
A-Net Out	Pro16e A-Net; RJ45 connector, unpowered
LED Indicators	Power On (red); Network Sync (green)
Stereo Link	Two 8-position DIP switch blocks (1-16, 17-32)
Output Voltage for Personal Mixers	24VDC, 0.5 amp; Transmitted over the Cat-5e cable
A-Net Cables	Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits. Unshielded Cat-5e cable may be used on all rear panel connections.
Power Supply & Fuses	Internal, IEC connector \| Input Voltage: 100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max AC Fuse Types: 115V range: T2.5AL/250V \| 230V range: T1.25AL/250V
Dimensions & Weight	19" (482.6 mm) wide x 7.386" (187.6 mm) deep; 2U, 3.5" (88.9 mm) high \| Weight: 12.0 lbs (5.44 kg)
