MT-1a Mic Stand Mount
Simple, sturdy mounting for your Aviom Personal Mixer or Control Surface.
The MT-1a is used to mount an A640 Personal Mixer, A360 Personal Mixer, A320 Personal Mixer, A-16II Personal Mixer, or the A-16CS Control Surface on a standard mic stand (threaded ring nuts included).
Features
- Attaches to any standard mic stand
- Threaded ring nuts included
- Compatible with A640, A360, A320, A-16II Personal Mixers, and A-16CS Control Surface
- Heavy-duty design for stage and studio reliability
Product Details
The MT-1a attaches with three screws to the bottom of an A640 Personal Mixer, A360 Personal Mixer, A320 Personal Mixer, A-16II Personal Mixer, or A-16CS Control Surface and mounts on any standard mic stand with the ring nuts supplied.
EB-1 Extension Bracket Support
With an optional right-angle attachment, the EB-1 Extension Bracket, you can mount a mixer or control surface directly onto the shaft of an existing mic or music stand.
This allows performers to keep their mixer within arm's reach without taking up an extra stand on stage.
MT-1a Technical Specifications
| Boxed Weight | 1 lb (0.45 kg) |
|---|---|
| Boxed Dimensions | 7" w x 5" d x 3" h (177.8 x 127.0 x 76.2 mm) |
| Dimensions | 6.25" wide at front x 4.5" wide at rear x 3" high |
| Connections | Attaches with three screws to bottom of an A640, A320, A360, A-16II, or A-16CS |
| Hardware Included | Screw Size: 6-32, 1/4-inch (6.35mm) long screws (includes three); Threaded ring nuts |
Product Images

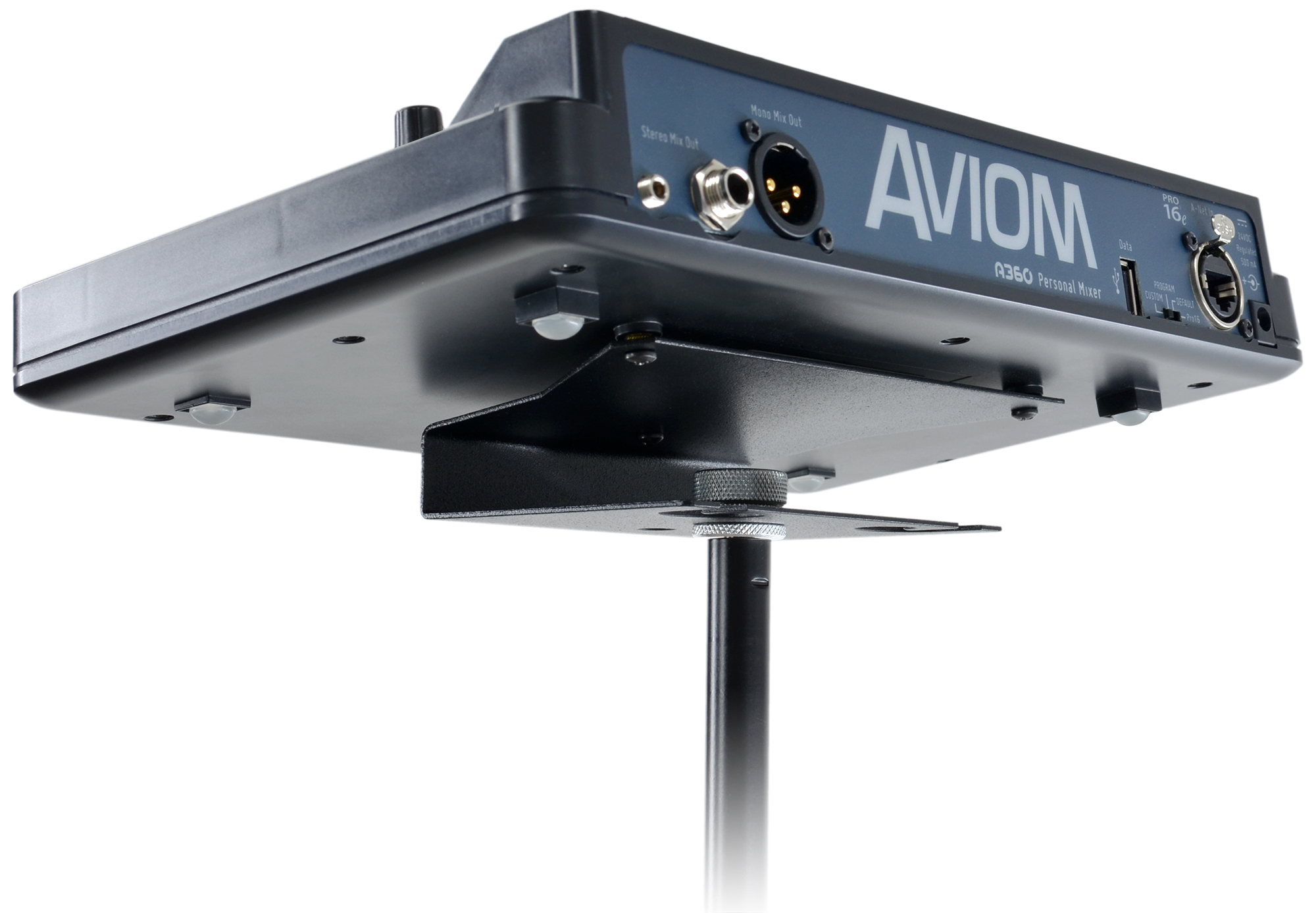

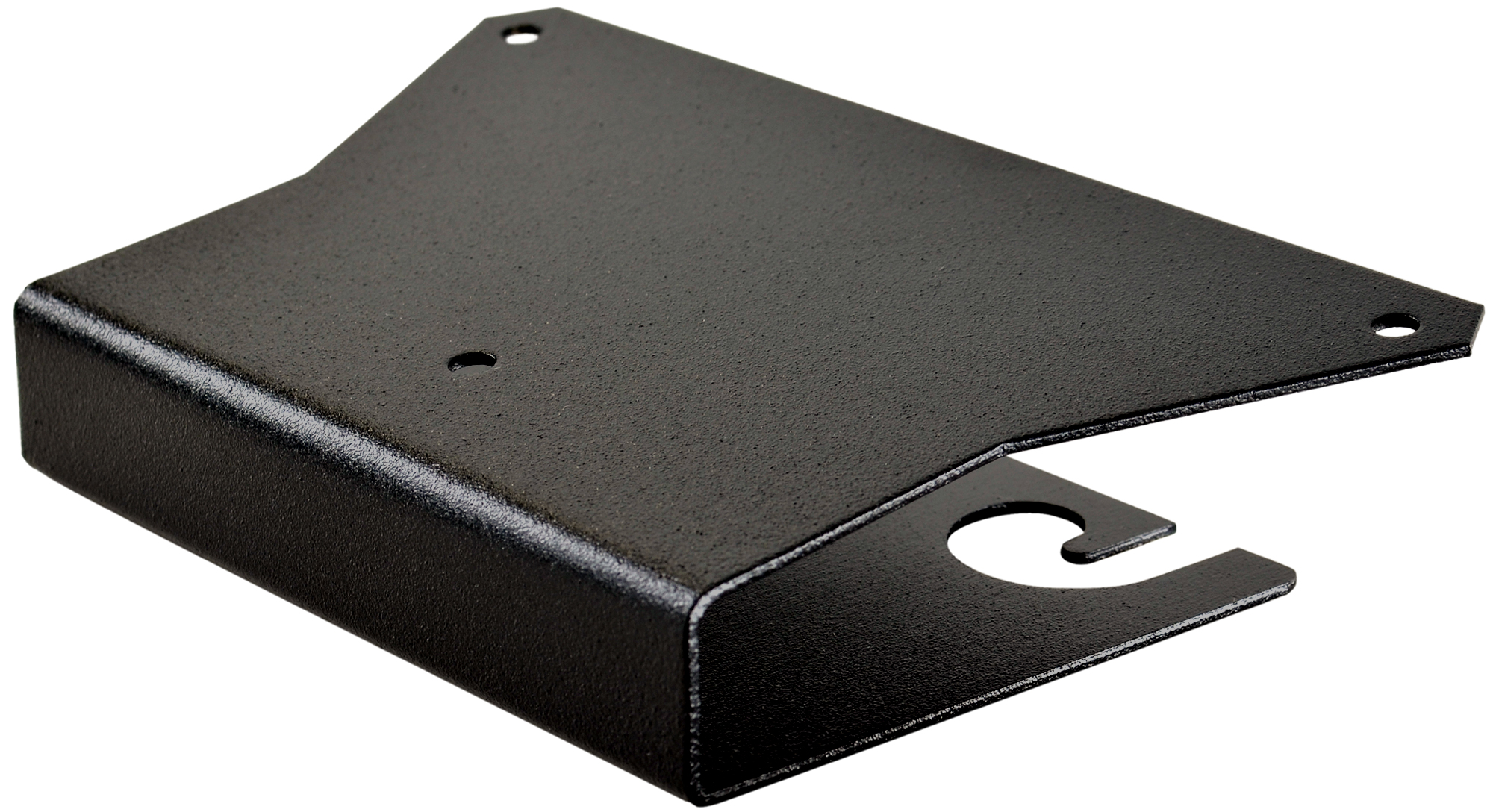

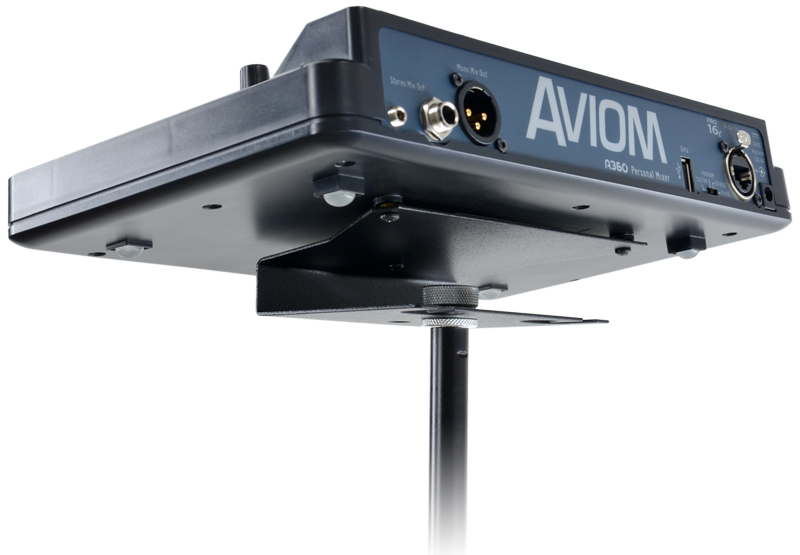

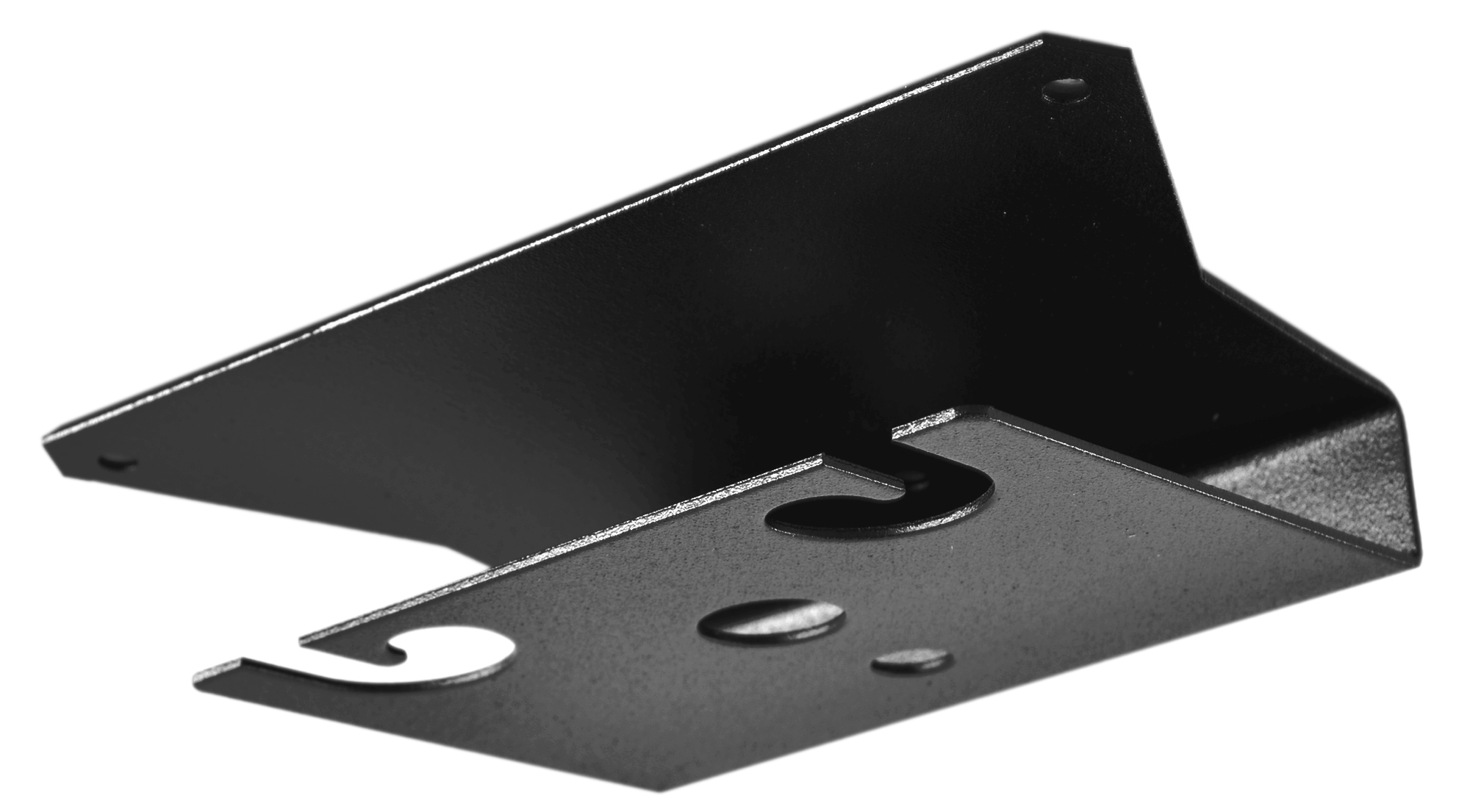

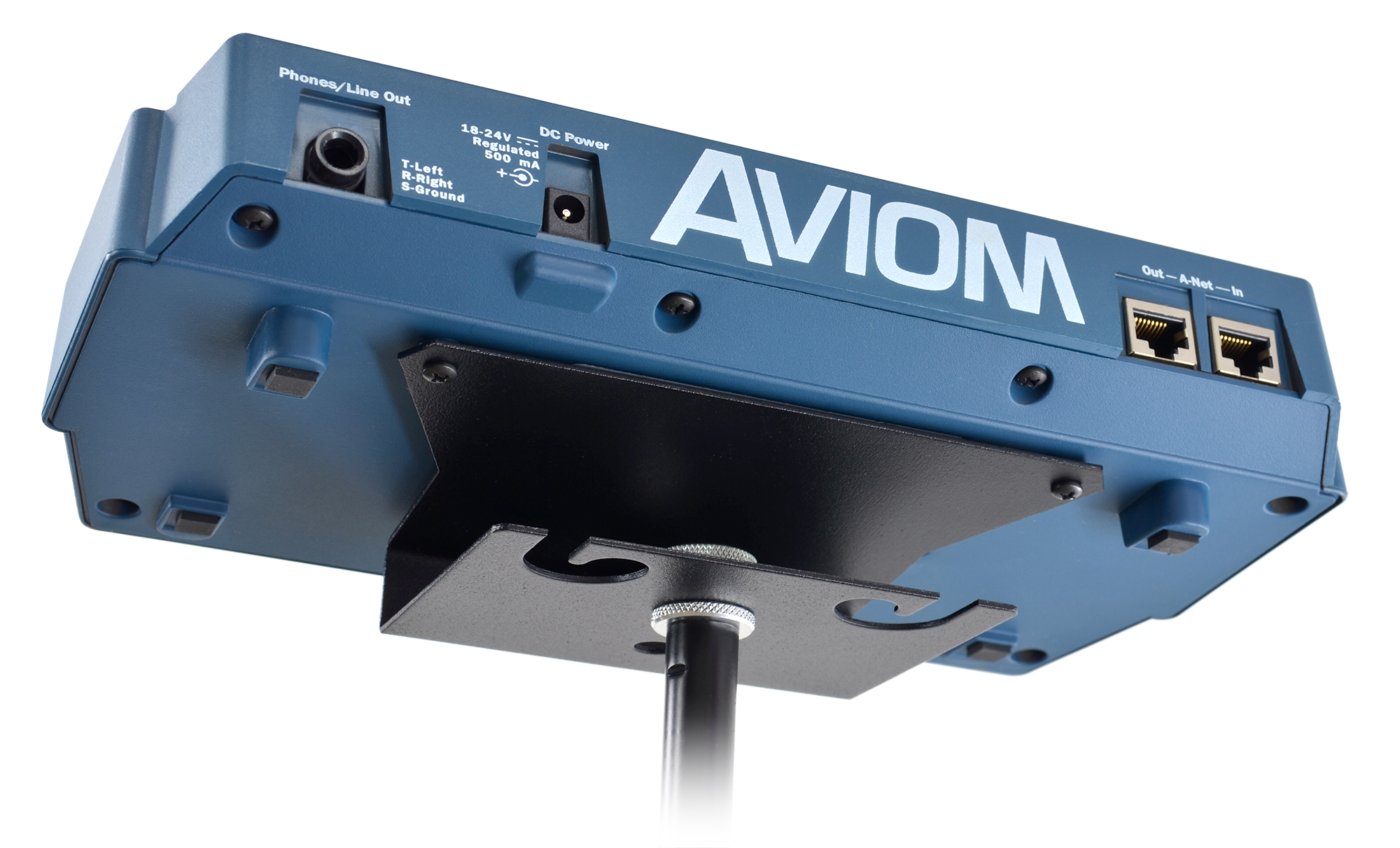

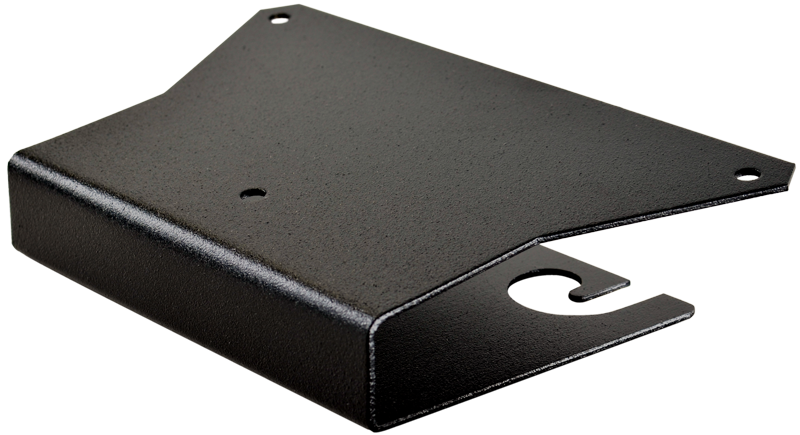

High-resolution front, rear, and mounted views of the MT-1a Mic Stand Mount. Click any image to view full screen.
