D400 & D400-Dante A-Net Distributors
Powerful Connectivity. More Affordable Than Ever.
Like the D800 family of A-Net Distributors, the D400 and D400-Dante provide robust, reliable connectivity, delivering power and high fidelity digital audio to your Aviom Personal Mixers—at an unbeatable price.
The D400 and D400-Dante A-Net Distributors can be used with A640, A320, A360, and A-16II Personal Mixers in any combination.
Learn about product compatibility with your existing system.

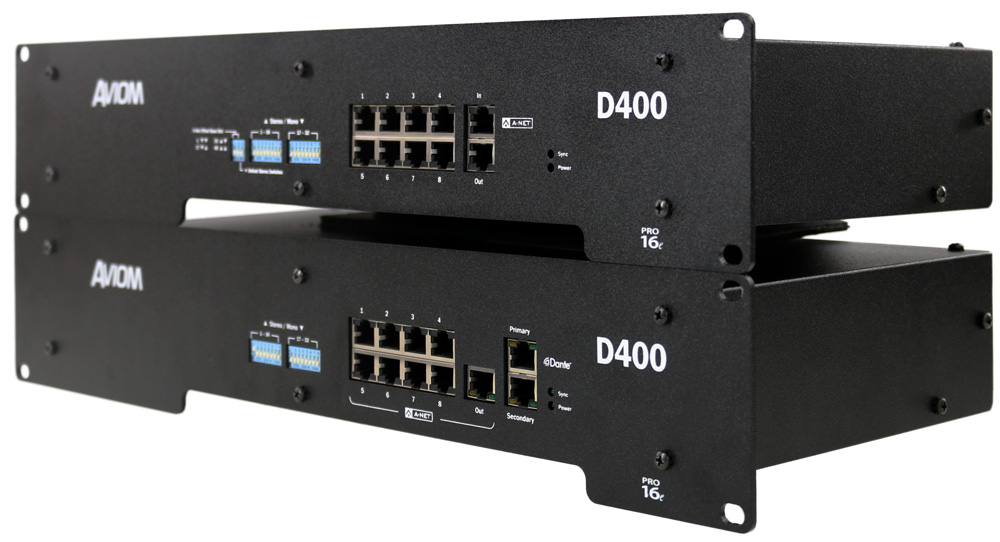

D400 & D400-Dante A-Net Distributors
The D400 and D400-Dante A-Net Distributors provide the link between the personal mixing system's inputs and the Personal Mixers, providing DC power and a copy of the A-Net digital audio stream to your Aviom Personal Mixers utilizing standard Cat-5e cables.
There are two versions of the D400 product: the standard D400 features an Aviom A-Net input (perfect for Aviom's analog input modules or digital console cards), while the D400-Dante features a Dante input allowing up to 32 channels (at 44.1/48kHz) to be routed from a Dante-enabled mixing console or network.

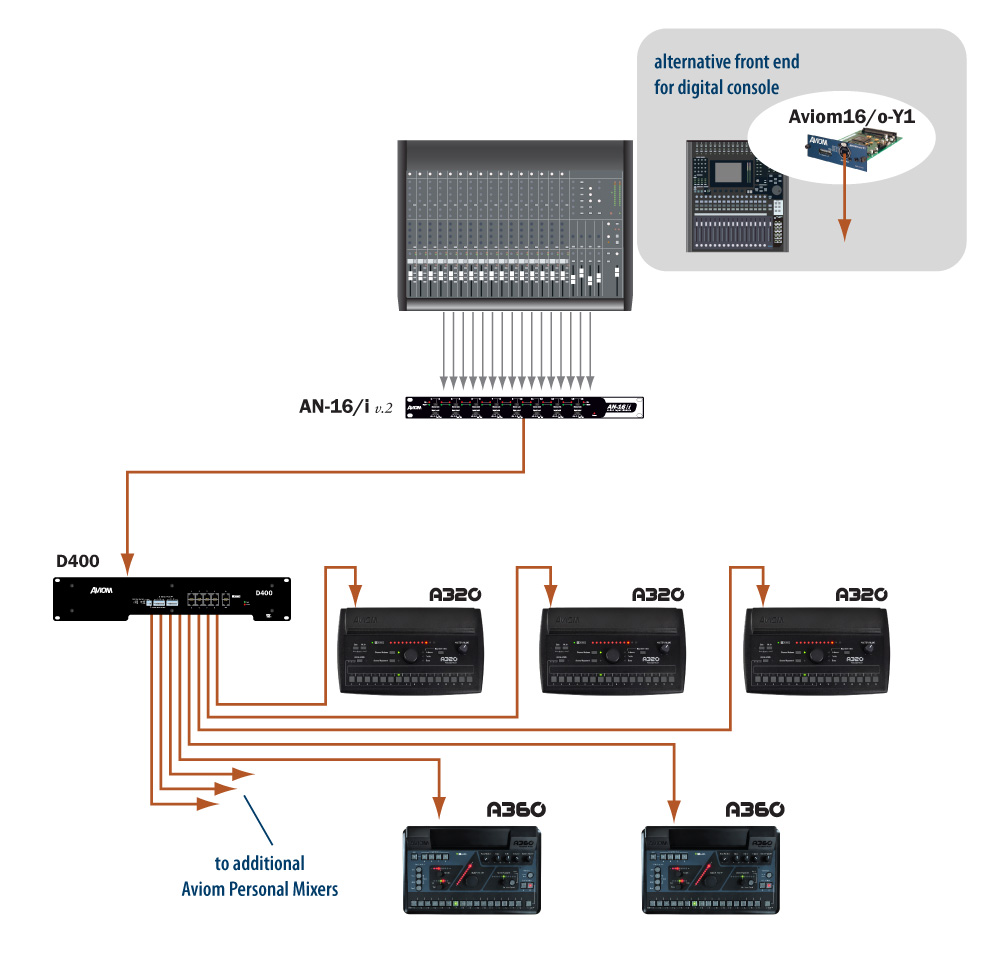

Connecting to Analog or Digital Consoles
For personal mixing systems that use one or more analog input modules (AN-16/i v.2 or legacy AN-16/i) or an A-Net console card (such as the Y1 A-Net Card for Yamaha digital consoles), use the standard D400 with the Aviom A-Net input.
With one Pro16 A-Net In and eight powered A-Net Outs, you can provide power and audio for up to eight Aviom Personal Mixers. The D400 also includes an unpowered A-Net Out for connecting additional A-Net Distributors in systems with more than eight mixers.

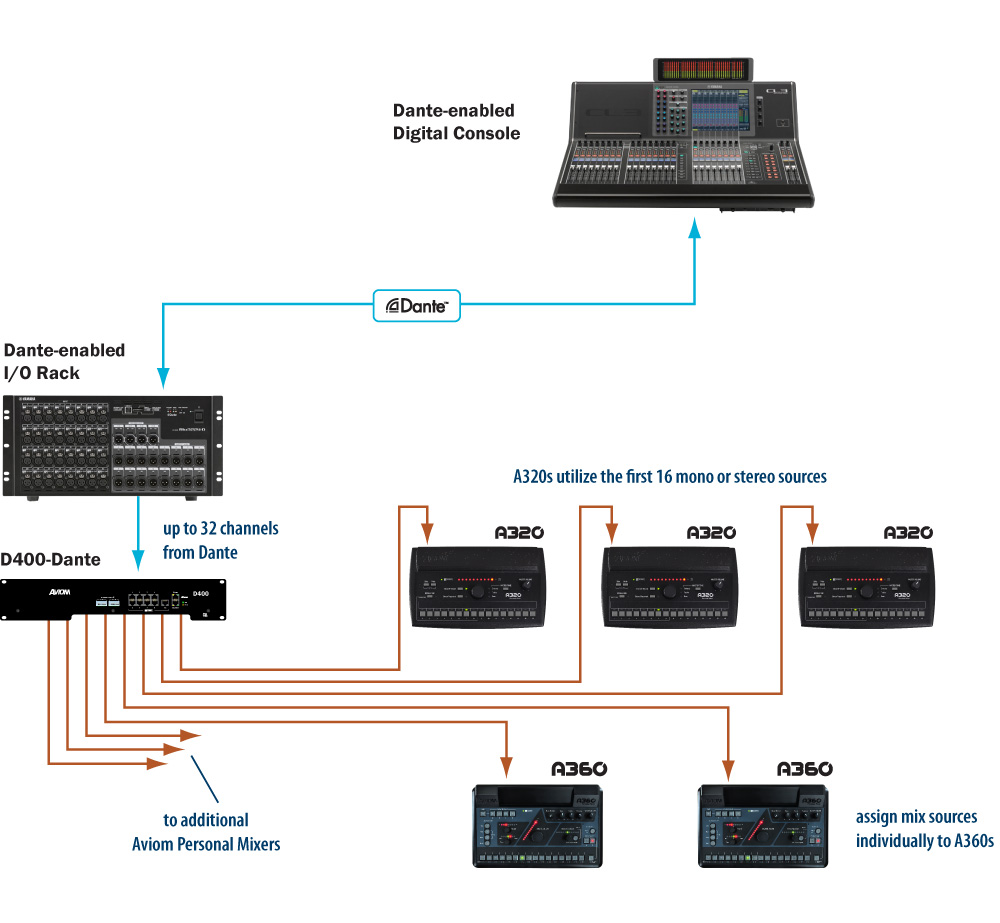

Connecting to Dante
If your audio system uses Dante audio networking, the D400-Dante is a great choice for basic connectivity to a Dante network.
The D400-Dante allows you to select any 32 channels from your 44.1/48kHz Dante network and assign them to your Aviom Personal Mixers using the Dante Controller application from Audinate.
Grow Your System
If you need more than eight Personal Mixers, both the D400 and the D400-Dante include an A-Net Out port—perfect for sending the incoming audio stream (regardless of its original source) to additional A-Net Distributors.
There is no practical limit to the number of A-Net Distributors and Personal Mixers that you can use in a system.

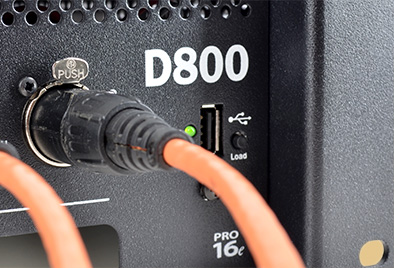

Need Even More Power & Flexibility?
If you're looking for more advanced features like Network Mix Back for use with wireless in-ear systems, higher sample rates up to 192kHz, or a high channel count interface (64 channels) to Dante, check out the flagship D800 and D800-Dante A-Net Distributors.

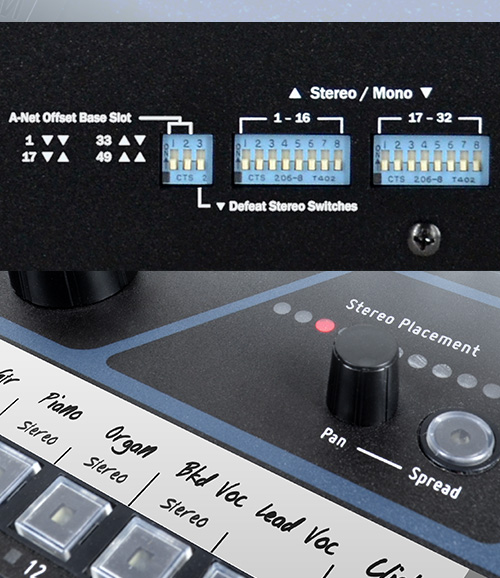

Stereo Links
Stereo Links are a powerful feature on the A640, A320, and A360 Personal Mixers, allowing a pair of adjacent channels to be assigned to a single mix channel button.
The D400 and D400-Dante give the user the option of assigning stereo links using a set of DIP switches on the front panel of the A-Net Distributor instead of at the input device.
A-Net Offset
The A-Net Offset DIP switches on the D400 can be used to select which bank of channels from the incoming A-Net stream will be assigned to the Personal Mixers connected to the distributor.
In larger systems, especially those using multiple A-Net Distributors, this allows extra channel assignment flexibility when connecting input sources to the network.
D400 & D400-Dante Technical Specifications
D400 and D400-Dante Common Specifications
| A-Net Out to Personal Mixers |
Eight RJ45 connectors, powered; Compatible with A640, A360, A320, and A-16II Personal Mixers |
|---|---|
| A-Net Out |
Pro16e A-Net; RJ45 connector, unpowered; Supports system expansion and A-16II, A320, and A360 Personal Mixers |
| LED Indicators | Power On (red); Network Sync (green) |
| Stereo Link | Two 8-position DIP switch blocks (channels 1-16, 17-32) |
| Output Voltage for Personal Mixers | 24VDC, 0.5 amp (Transmitted over Cat-5e cable) |
| A-Net Cables |
Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B limits. Other Network Connections: Unshielded Cat-5e cable may be used. |
| Power Supply | Internal, IEC connector |
| Input Voltage | 100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @ 220 W max |
| AC Fuse Types |
115V range: T2.5AL/250V, slow-acting 230V range: T1.25AL/250V, slow-acting |
| Dimensions | 19" (482.6 mm) wide x 7.25" (182 mm) deep; 2U, 3.5" (88.9 mm) high |
| Weight | 12.0 lbs (5.44 kg) |
D400-Dante Model Specifications
| Dante Interface | 32 channels from a Dante network (44.1/48kHz Sample Rate only) |
|---|---|
| Dante Primary I/O | RJ45 connector |
| Dante Secondary I/O | RJ45 connector |
| Dante LEDs | Network Activity (green); 1GB Network Connection Active (yellow) |
| Static IP & AES67 Support | Yes |
D400 A-Net Distributor Specifications
| A-Net Input | Pro16e Aviom A-Net; RJ45 connector |
|---|---|
| A-Net Offset Base Slot | 3-position DIP switch selects starting channel received from network (1, 17, 33, or 49) |

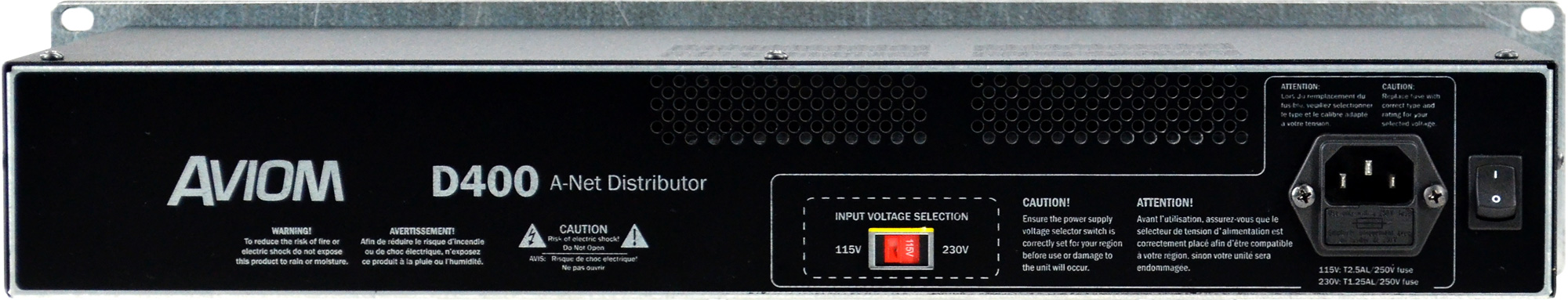

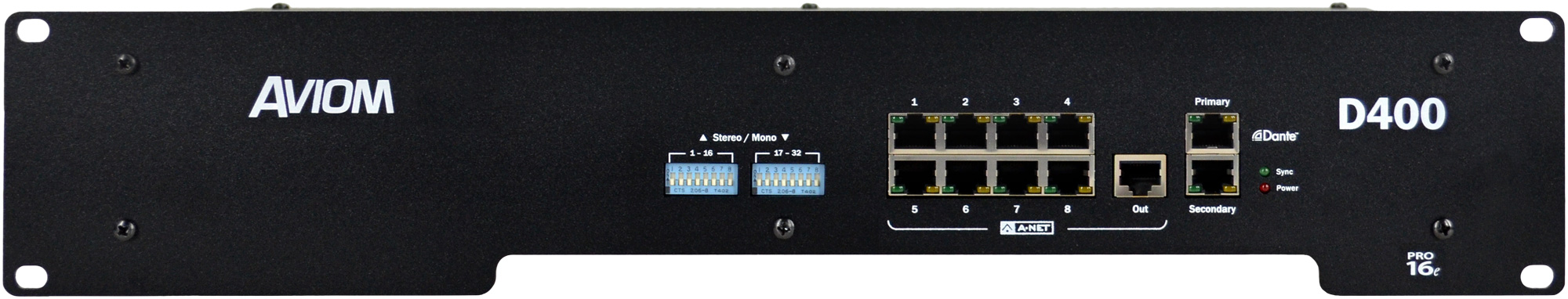

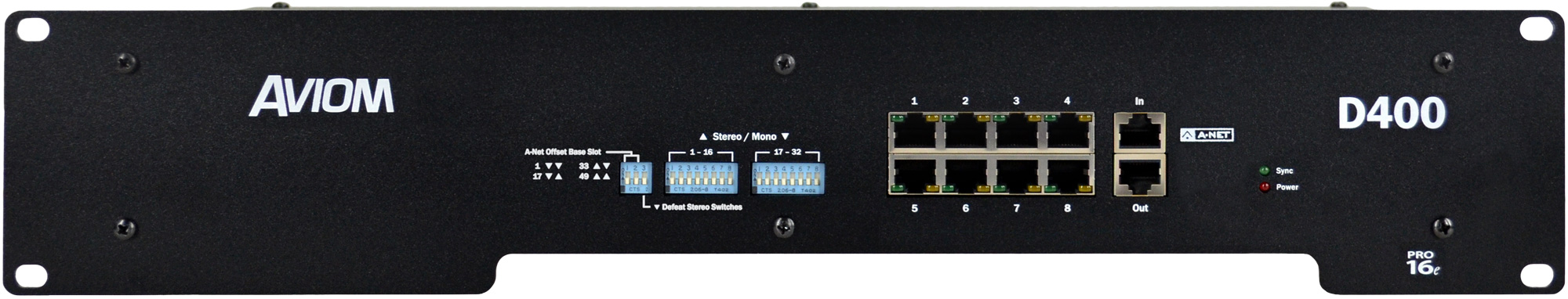

Product Images
High-resolution front and rear panel views of the D400 and D400-Dante distributors. Click any image to view full screen.
🔍 Click to enlarge
🔍 Click to enlarge
🔍 Click to enlarge
Product Resources
Download official data sheets and user manuals for the D400 and D400-Dante distributors.
