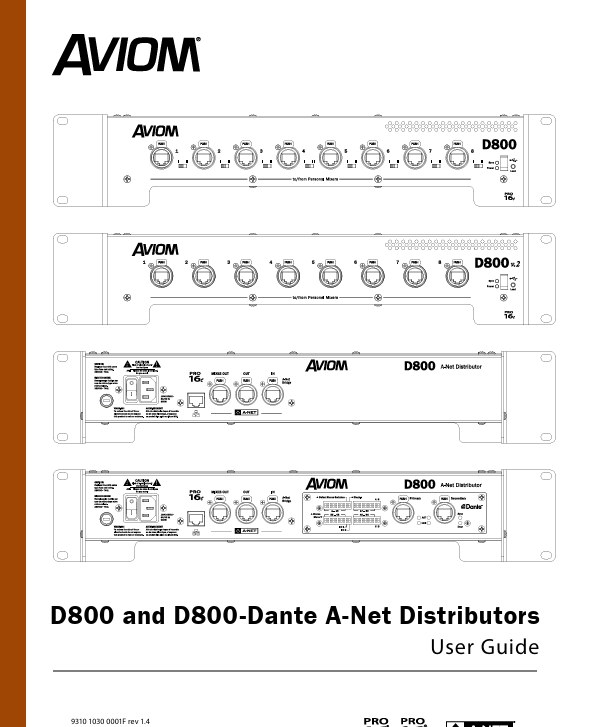

D800 & D800-Dante A-Net Distributors
The D800 and D800-Dante A-Net Distributors provide the link between the Dante network, input module, or console card and the Personal Mixers, providing DC power and the digital A-Net audio data stream to your Aviom Personal Mixers, utilizing standard Cat-5 cables.
The A-Net and Dante versions of the D800 also integrate additional advanced options for delivering high-channel-count audio streams to your Personal Mixers, streamlining connections between A640 and A360 Personal Mixers and transmitters used for wireless in-ear monitors.
There are two variations of the D800 product design. The orignal versions of the D800 and D800-Dante used front panel switches (labeled I/II) to control bidirectional communication when used with Aviom Personal Mixers. D800 v.2 and D800-Dante v.2 elminate the need for the bidirectional switches by automatically setting up bidirectional communication with Aviom Personal Mixers as needed. The original and v.2 versions of the product can be freely interchanged in systems designs.
The D800 and D800-Dante can be used with A640*, A360, A320, and A-16II Personal Mixers in any combination.
Learn about product compatibility with your existing system.
* The D800 requires v4.00 (or higher) Aviom firmware for full functionality with the A640 Personal Mixer.
Overview
Simple setup. Powerful performance. On the most basic level, the D800 and the D800-Dante do an unglamorous but important job: get power and audio to your Personal Mixers.
Setup is a breeze, with no IP addressing, routing, or switch managing to worry about, so you can get set up and start mixing in no time, without a lot of hassle.
Get More Channels to Your Mixers

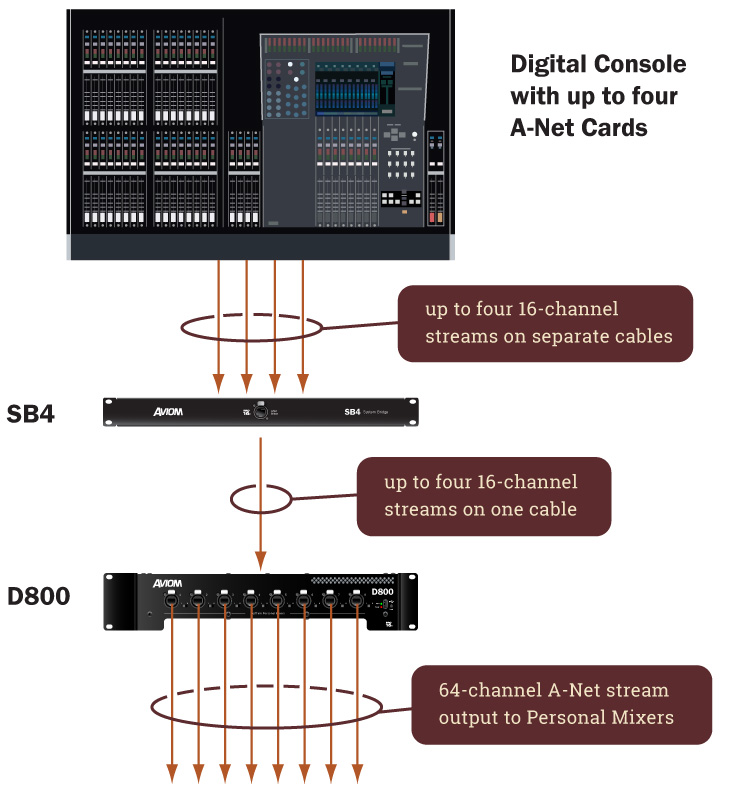

Used in conjunction with the SB4 System Bridge and Pro16 A-Net console cards (such as the Y1 A-Net Card for Yamaha®), the D800 and D800-Dante can combine up to four 16-channel A-Net streams for sending up to 64 channels directly from your digital console to your Aviom Personal Mixers.
Mix channels can be individually selected for each A640 right from its user interface and for the A360 Personal Mixer by using A360 Channel Manager, allowing each musician to mix exactly the sources they need.
Connect Directly to Dante
If your audio system includes a Dante™ audio network, the D800-Dante can interface directly to the network. Assign up to 64 channels from Dante to the D800-Dante for distribution to Aviom Personal Mixers. Use the A640 Personal Mixer's Channel Mapping feature to select a custom set of channels for each performer.
Mix channels can be individually selected for each A360 using the A360 Channel Manager software. Rear-panel DIP switches on the D800 are used to set global stereo links for channels going to Personal Mixers. Use the Dante Controller Mac/PC application for channel routing.
Grow Your System
If you need more than eight Personal Mixers, both the D800 and the D800-Dante include an A-Net Out port on the rear panel—perfect for sending the incoming digital audio stream (regardless of its original source) on to additional A-Net Distributors.
Precision Engineered for Reliability

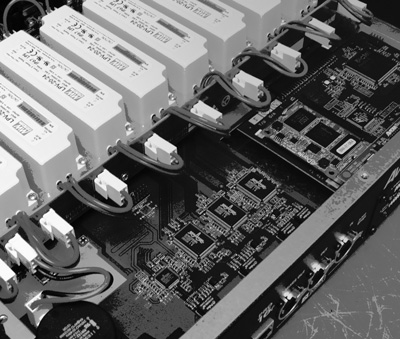

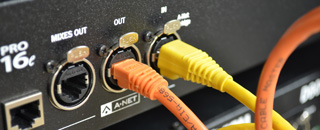

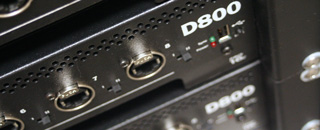

From the innovative power supply sub-system to the mechanical design to the whisper-quiet thermal management, the D800 and D800-Dante are built to give you rock-solid performance you can count on in demanding tour and installation environments.
Network Mix Back for Wireless In-Ears

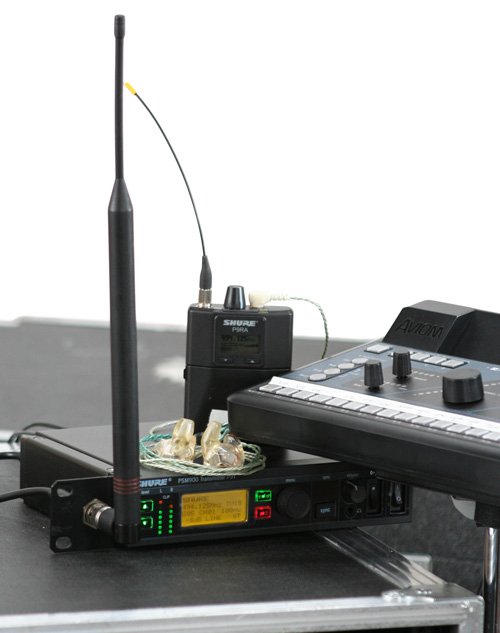

If you're using A640 Personal Mixers or A360 Personal Mixers, the D800 and D800-Dante eliminate the need for running analog cables from personal mixers back to the transmitter units for wireless in-ear monitors.
Extend the Interface with iOS

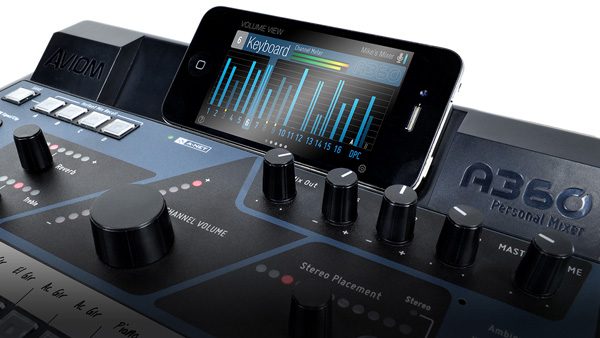

The D800 and D800-Dante manage communication between A360 Personal Mixers and supported iOS devices, allowing users to run the A360 Display™ app alongside their A360.
D800 & D800-Dante Technical Specifications
| A-Net to/from Personal Mixers (front panel) |
Eight locking RJ45 connectors, powered; Compatible with A-16II, A320, and A360 Personal Mixers; 2-position switch (I/II) accommodates A-16II and A320 (I) and the bidirectional A360 Personal Mixer (II) (* The I/II switches are not required on D800 v.2) |
|---|---|
| A-Net In or A-Net Bridge In | Accepts Pro16 or Pro16e A-Net; one locking RJ45 connector |
| A-Net Out (rear panel) |
Pro16e A-Net; one locking RJ45 connector, unpowered; Supports system expansion and A-16II, A320, and A360 Personal Mixers |
| A-Net Mixes Out |
Pro16e A-Net; One locking RJ45 connector, unpowered; Provides up to 16 channels (8 stereo pairs) of Network Mix Back™ data from up to eight A360 Personal Mixers |
| Ethernet | One RJ45 connector; for iOS A360 Display support |
| LED Indicators | Power On (red); Sync (green) |
| USB | Used for firmware updates |
| A-Net Cables |
Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits. Rear Panel Connections: Unshielded Cat-5e cable may be used on all rear panel connections. |
| Output Voltage for Personal Mixers | 24VDC, 0.5 amp (Transmitted over the Cat-5e cable) |
| Power Supply | Internal, universal switching type, IEC connector |
| Input Voltage & Fuse | 100-240VAC, 50-60Hz, 300W | Fuse: 250VAC~ T4AL |
| Dimensions | 19" (482.6 mm) wide x 14.25" (362 mm) deep; 2U, 3.5" (88.9 mm) high |
| Weight | 12.0 lbs (5.44 kg) |
Dante Specifications (D800-Dante Model)
| Dante Primary I/O | Locking RJ45 connector |
|---|---|
| Dante Secondary I/O | Locking RJ45 connector |
| Stereo Link | Four DIP Switch blocks: 1-16, 17-32, 33-48, and 49-64; used to set up to 32 channel pairs as stereo links |
| Stereo Link Defeat | Bypasses DIP switch stereo link settings |
| Disable DIP Switch | Chooses Dante (down) or A-Net In (up) as the input source for the D800-Dante |
| ID1, ID2 / A, B, C, D DIP Switches | Reserved |
| Rear Panel LEDs | Error (red); Sync (green); 1GB Active (red); Network Activity (green) |
| Supported Dante Sample Rates |
44.1, 48kHz – 64 channels 88.2, 96kHz – 32 channels 176.4, 192kHz – 16 channels |
| Static IP & AES67 Support | Yes (Supported on all D800-Dante units) |
Product Images

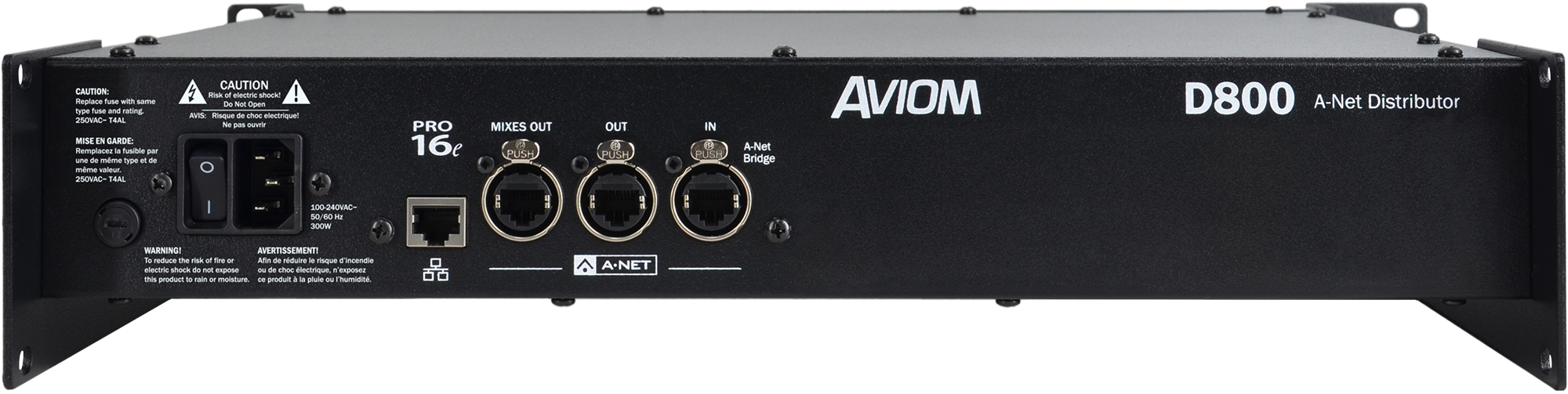

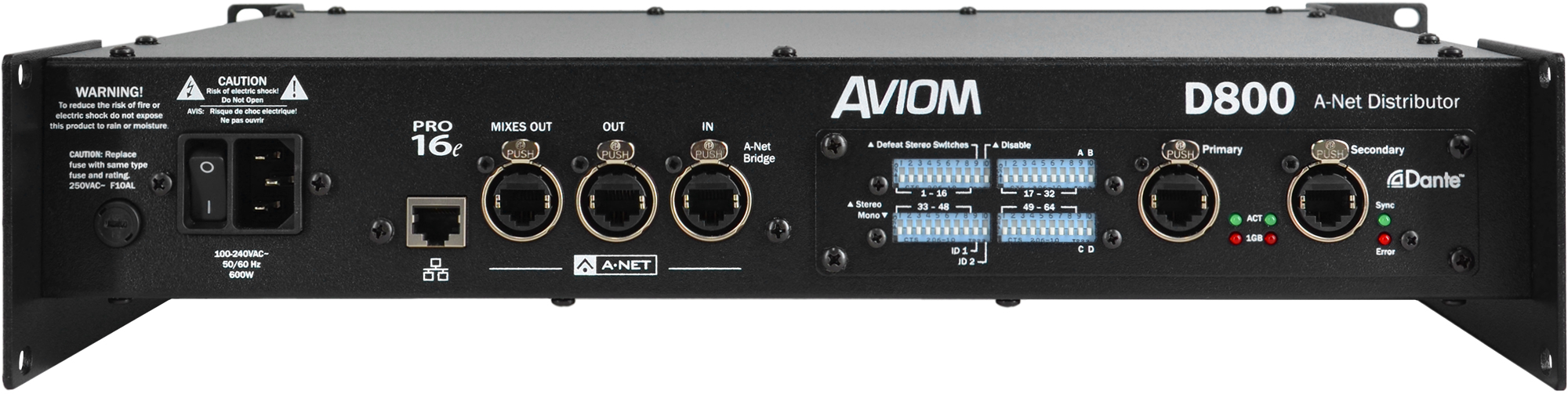

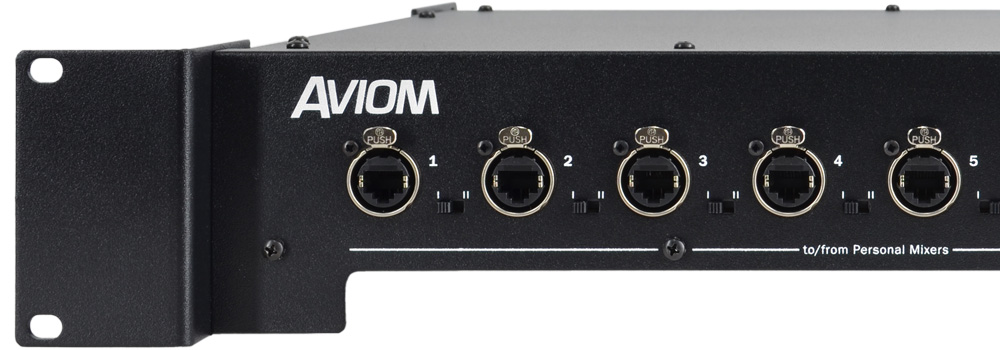

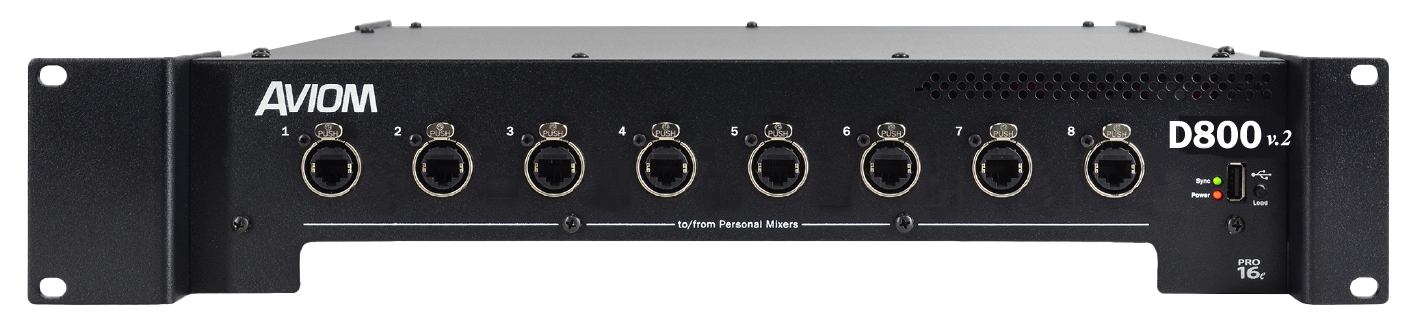

High-resolution front and rear panel views of the D800 series distributors. Click any image to view full screen.
