A320 Personal Mixer
The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes.

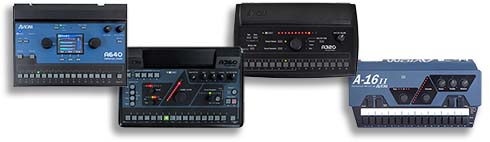

Ideal for use with in-ear monitors and headphones, the A320 gives musicians powerful control over their mix, while also preserving the simplicity required for use while performing. The A320 is compatible with all existing and legacy Aviom personal mixing systems and can be used simultaneously with the A640, A360 and A-16II Personal Mixers.
Learn about product compatibility with your existing system.
A320 Personal Mixer
The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes without complex menus or clutter.
Key Features
- 16 mono or stereo sources
- 32-channel mix engine
- Per-channel volume and Stereo Placement
- Eight customizable mix presets
- Three-band master tone controls optimized for in-ear monitors
- Per-channel solo and mute
- Compatible with existing Aviom personal mixing systems
Made for the Musician
Musicians are not engineers, and mixing while playing music or singing is very different than just mixing. That's why the A320 is designed with such a clean user interface. No clutter. No menus. Just quick access to the mixing controls you need.
Simple to its core
The A320 doesn't have a lot of bells and whistles. By design. Because when you're focused on playing music, bells and whistles can just get in the way. That's why the A320 gives musicians the controls that matter most for adjusting their monitor mix and keeps the rest out of the way.
Want to feel your mix too? Learn about the BOOM System →
Stereo clarity in every channel
Each of the 16 mix channels on the A320 can host a mono or a stereo source. That means you can preserve the fidelity of your stereo instruments and submixes from the console without giving up another mix source in your personal mixer.
And that translates directly into clearer, more natural sounding monitor and cue mixes.
Easy stereo placement
Good stereo imaging in a monitor mix is essential for hearing every source clearly and distinctly within the context of the ensemble. It's also an important way to reduce the sense of isolation many musicians experience with in-ear monitors.
Like its big brother the A640 Personal Mixer, the A320 allows users to pan both mono and stereo sources. With stereo sources, the Stereo Placement control adjusts both the separation and the position of the source in the mix as a whole—placing all that power in a single control.
Rich, vibrant sound quality
The A320's master tone filters are easy to use—even if you don't know a thing about EQ—and they'll help your in-ear monitors sound their best, no matter what type of music you play.
Rugged, reliable & consistent
From the enduring simplicity of the mechanical design to the elegant efficiency of the embedded software, the A320 is built to work when you need it to work and to withstand the abuses of life on stage and in the studio.
The A320 includes space for eight mix presets, so you can save your favorite mixes and get reliable results in your monitors every time you play.

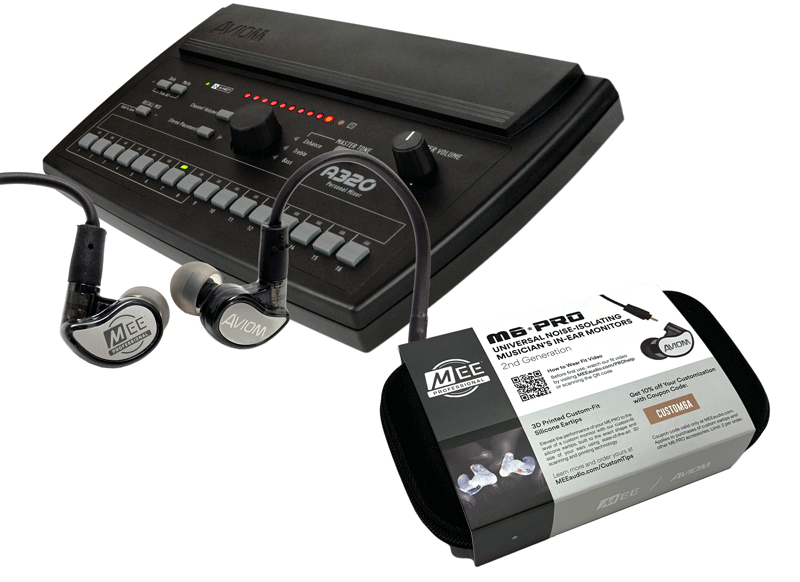

Need In-Ears? Get the Bundle!
The A320 Personal Mixer is also available in a bundle with a set of MEE Audio M6 Pro IEMs.
These great sounding single-driver earbuds feature a detachable, replaceable cord and come with an assortment of flexible ear tips that reduce outside noise and allow you to easily find the most comfortable fit for your ears. Each set also includes custom-engraved metal faceplates and a protective case.

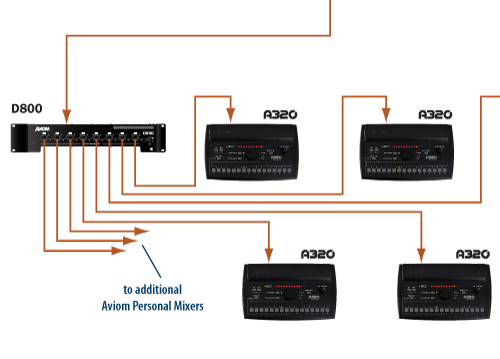

How It Works
Whether you're adding to an existing Aviom personal mixing system or building a new one, getting up and running with the A320 is a breeze.
For older systems, use the A320 in Pro16 mode, with 16 channels spread across the interface and stereo sources occupying adjacent channel buttons, like on the iconic A-16II Personal Mixer. For systems with more channels, switch the A320 into Pro16e mode to access the full power of its 32-channel mix engine which supports any combination of 16 mono or stereo sources.
In Depth
Compatibility
The A320 Personal Mixer is forward and backward compatible with most Aviom Pro16 and Pro16e devices*. This includes:
- AN-16/i v.2 Input Module
- Y1 Card for Yamaha MY devices
- A-Net Console cards from Aviom's development partners
- D400 & D400-Dante A-Net Distributors
- D800 & D800-Dante A-Net Distributors
Legacy Devices:
- AN-16/i Input Module
- AN-16/i-M Mic Input Module
- A-16D A-Net Distributor
- A-16D Pro A-Net Distributor
The A320 may also be used in the same system with the A640, A360, and A-16II Personal Mixers.
* Power Requirement Note: The A320 Personal Mixer must be connected to an A-Net Distributor to operate. It does not support an external DC power supply.
Technical Specifications
Comprehensive audio, power, physical, and networking specifications for the Aviom A320 Personal Mixer.
| Audio Output | 1/4" TRS stereo, headphone or line level |
|---|---|
| Stereo Mix Output, Headphone/Line | Tip: Audio Left; Ring: Audio Right; Sleeve: Ground |
| A-Net I/O |
1 A-Net In, RJ45 connector; Supports Pro16 (16-channel) and Pro16e (32-channel) |
| D/A Conversion | 44.1/48kHz, 24-bit |
| Stereo Operation |
Stereo Link, per channel pair; Set at the input module; Variable pan per mono channel or pan/spread per stereo channel pair |
| Headphone Output | 275 mW per side into 50 Ohms (both sides driven) |
| Output Impedance | 5 Ohms |
| Freq. Response | 3Hz–22kHz +0.2dB/-3dB at 50 Ohms |
| THD +N | < 0.003% |
| Output Voltage for Personal Mixers |
24VDC, 0.5 amp; Transmitted over the Cat-5e cable |
| Signal to Noise (unweighted) | -106dB (measured with zero data into all channels) |
| Latency | 0.880 msec (measured from analog input to analog output) |
| Pro16e A-Net |
Use Cat-5e (or better) cable; Maximum 400 ft (122 m) between devices; Supports Power Over A-Net |
| Cat-5 cable | Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits. |
| Power |
24 VDC, 0.5 amp; Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor (required) |
| Dimensions | 10.26" (260.6 mm) wide x 6.14" (155.95 mm) deep x 1.91" (48.51 mm) high |
| Weight | 1.3 lb. (0.59 kg) |
| Options | MT-1a Mic Stand Mount |

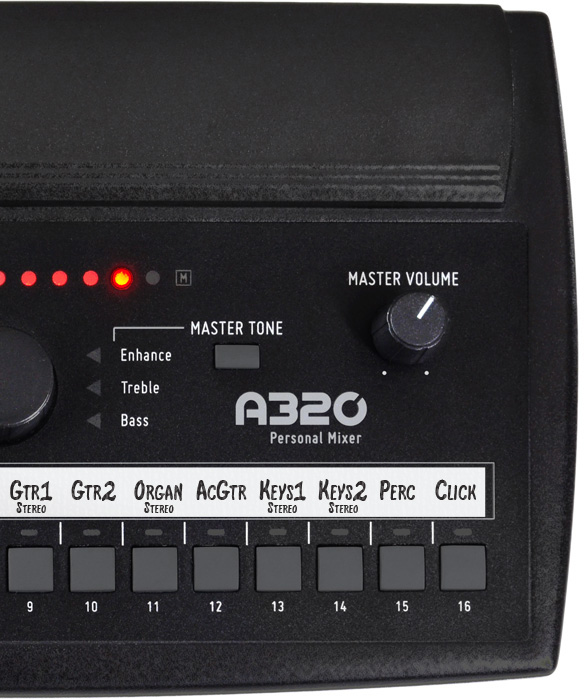

Product Images

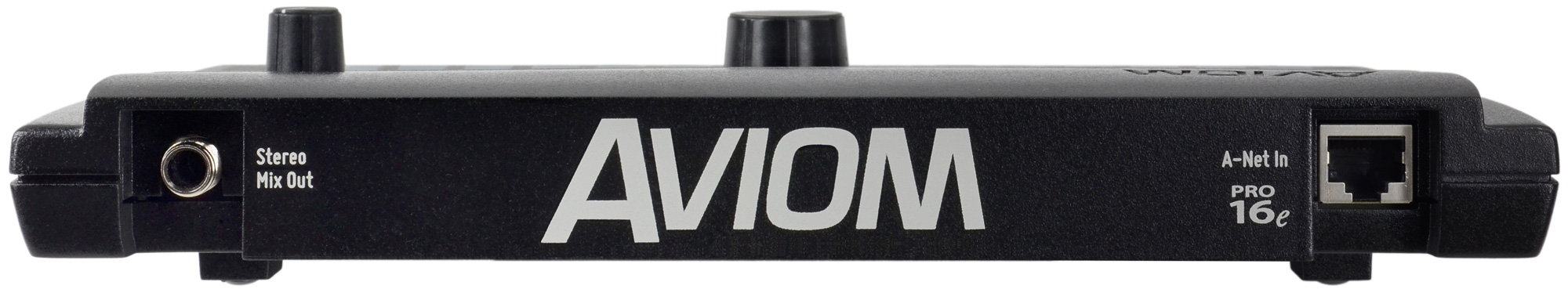

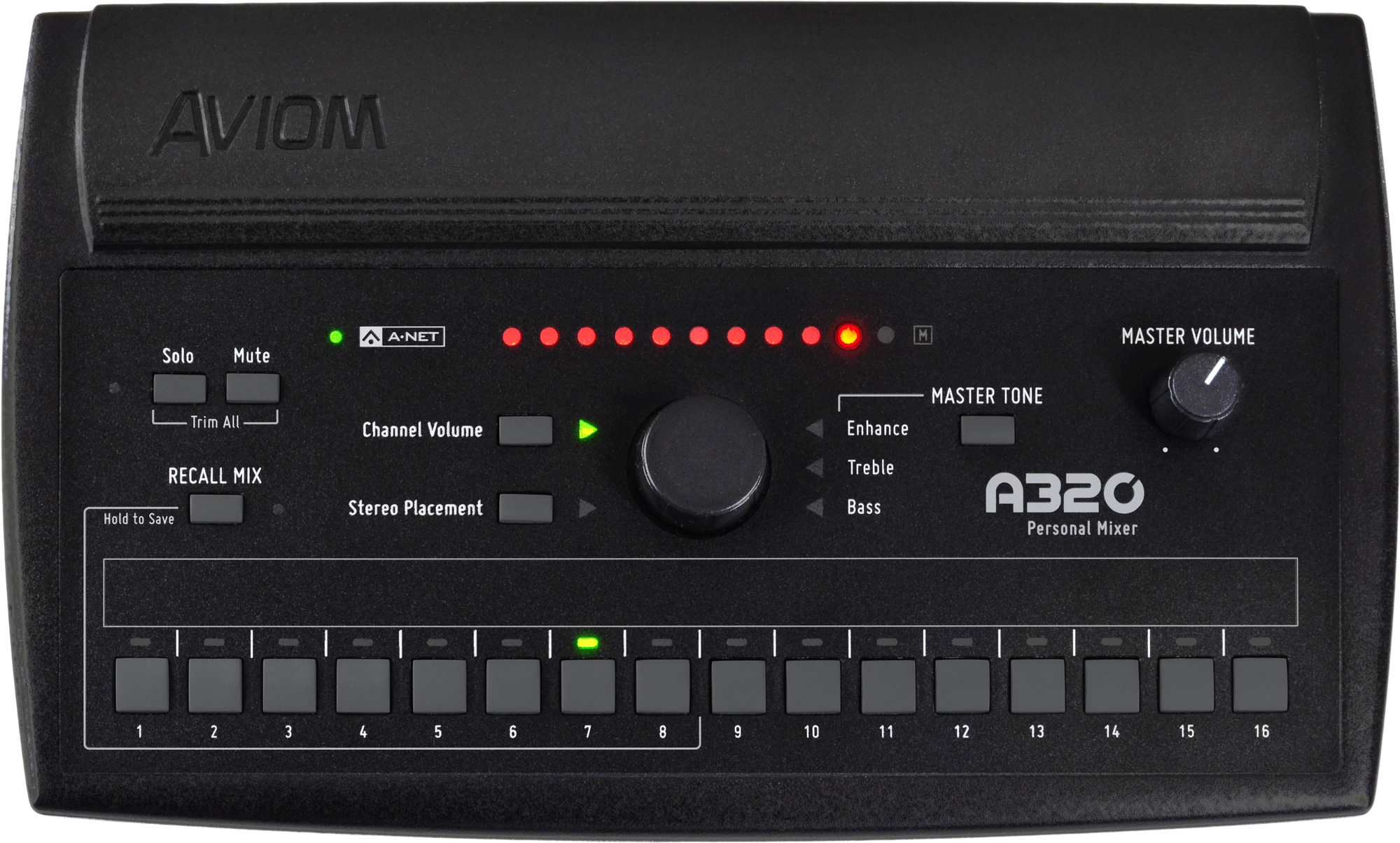

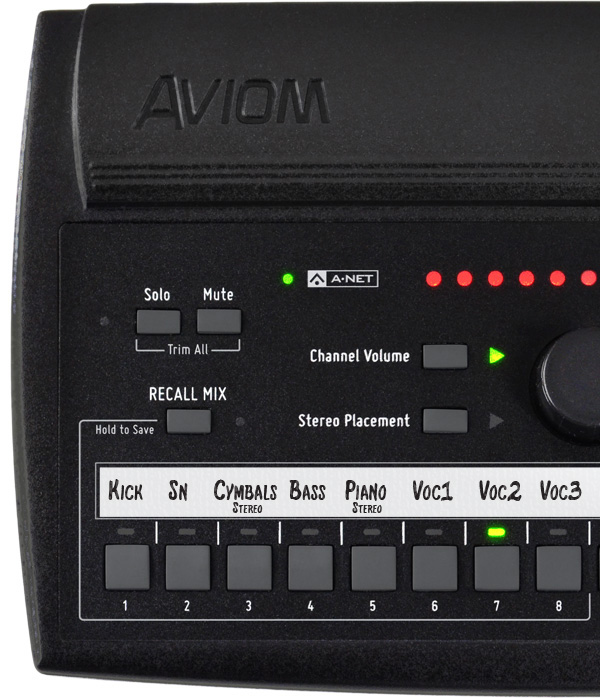

High-resolution front and rear panel views of the Aviom A320 Personal Mixer. Click any image to view full screen.
Product Resources
Access data sheets, user guides, quick start instructions, and layout templates for the Aviom A320 Personal Mixer.
